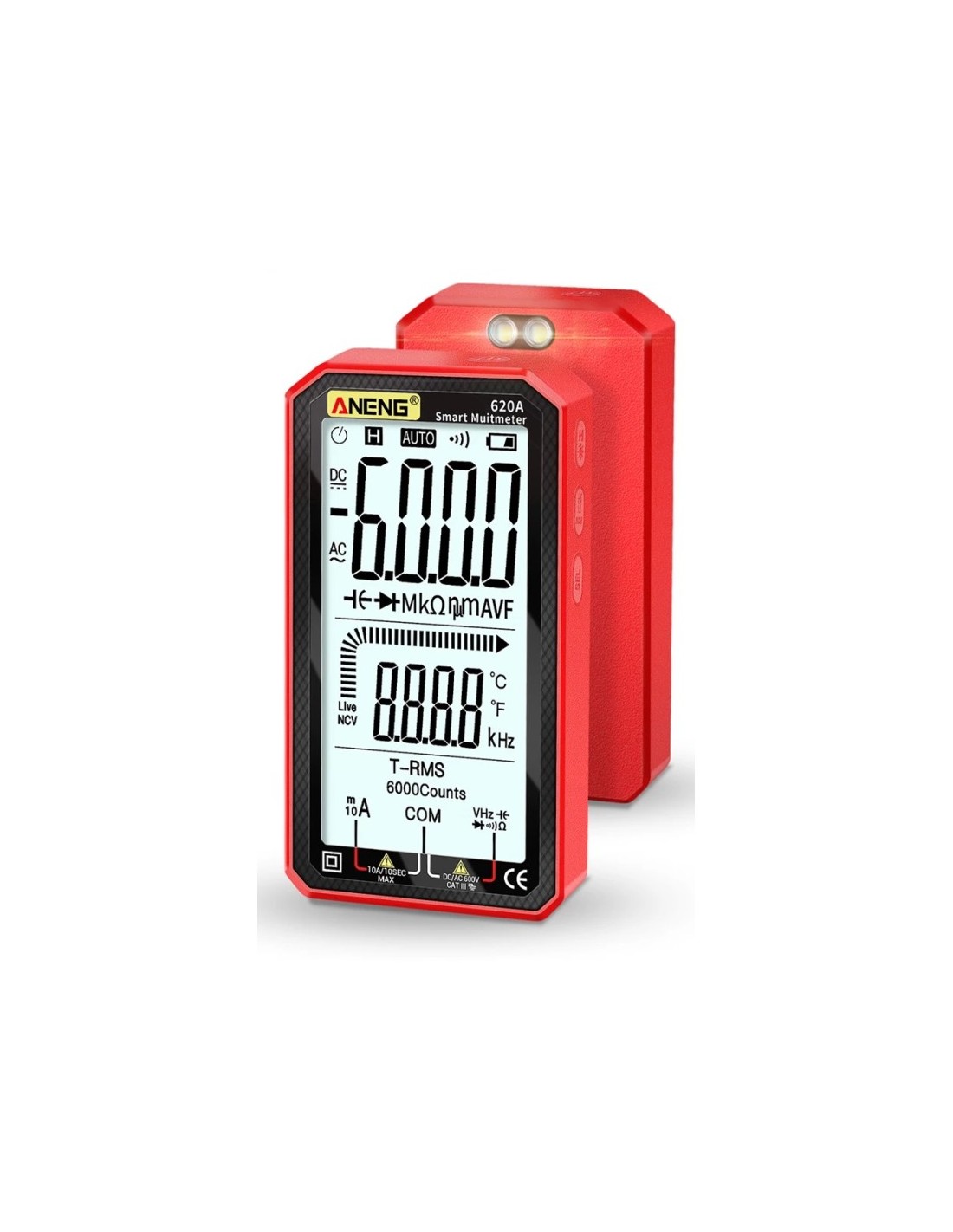

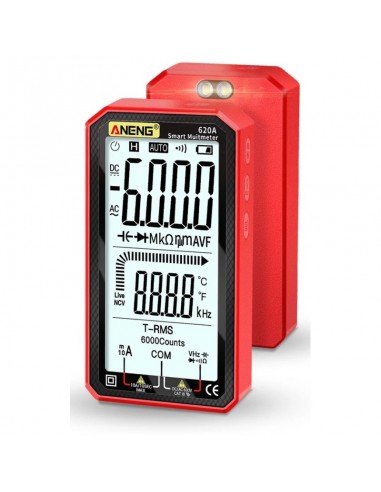

ANENG 620A Digital Smart Multimeter

ANENG 620A Digital Smart Multimeter

Enhance your electrical testing capabilities with the ANENG 620A Digital Smart Multimeter. This advanced instrument offers a wide range of functions and features to meet your testing needs with accuracy and efficiency.

Overview:

• Display: LCD with a maximum display value of 6000 digits
• Automatic Shut Down Time: 15 minutes for energy-saving operation
• Power Supply: Requires 2*1.5V AAA batteries (not included)
• Calibration Cycle: Recommended recalibration under 18℃~28℃, with relative humidity less than 75%

Specifications:

• AC Current: 6000mA/10A with accuracy of +-(1.0%reading+8 digits)
• DC Current: 6000mA/10A with accuracy of +-(1.0%reading+5 digits)
• DC Voltage: 6V/60V/600V with accuracy of +-(0.5%reading+3 digits)
• AC Voltage: 6V/60V/600V with accuracy of +-(0.8%reading+5 digits)
• Line On-Off Test: 1Ω
• Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ with accuracy of +-(0.8%reading+3 digits)
• Diode Test: 1V
• Capacitor: 6nF/60nF/6uF/60uF/600uF/6mF/60mF with accuracy of +-(10%reading+40 digits) for smaller values and +-(2.5%reading+20 digits) for larger values
• Temperature: -401000℃ or -401832℉ with accuracy of +-(1%reading+3℃) or +-(1%reading+3℉)
• Frequency: 100Hz/1000Hz with accuracy of +-(1.0%reading+5 digits)

Package Contents:

• 1x Multimeter
• 1x Set of Leads

Upgrade your testing toolkit with the ANENG 620A Digital Smart Multimeter and enjoy precise and reliable measurements for a variety of electrical applications.
