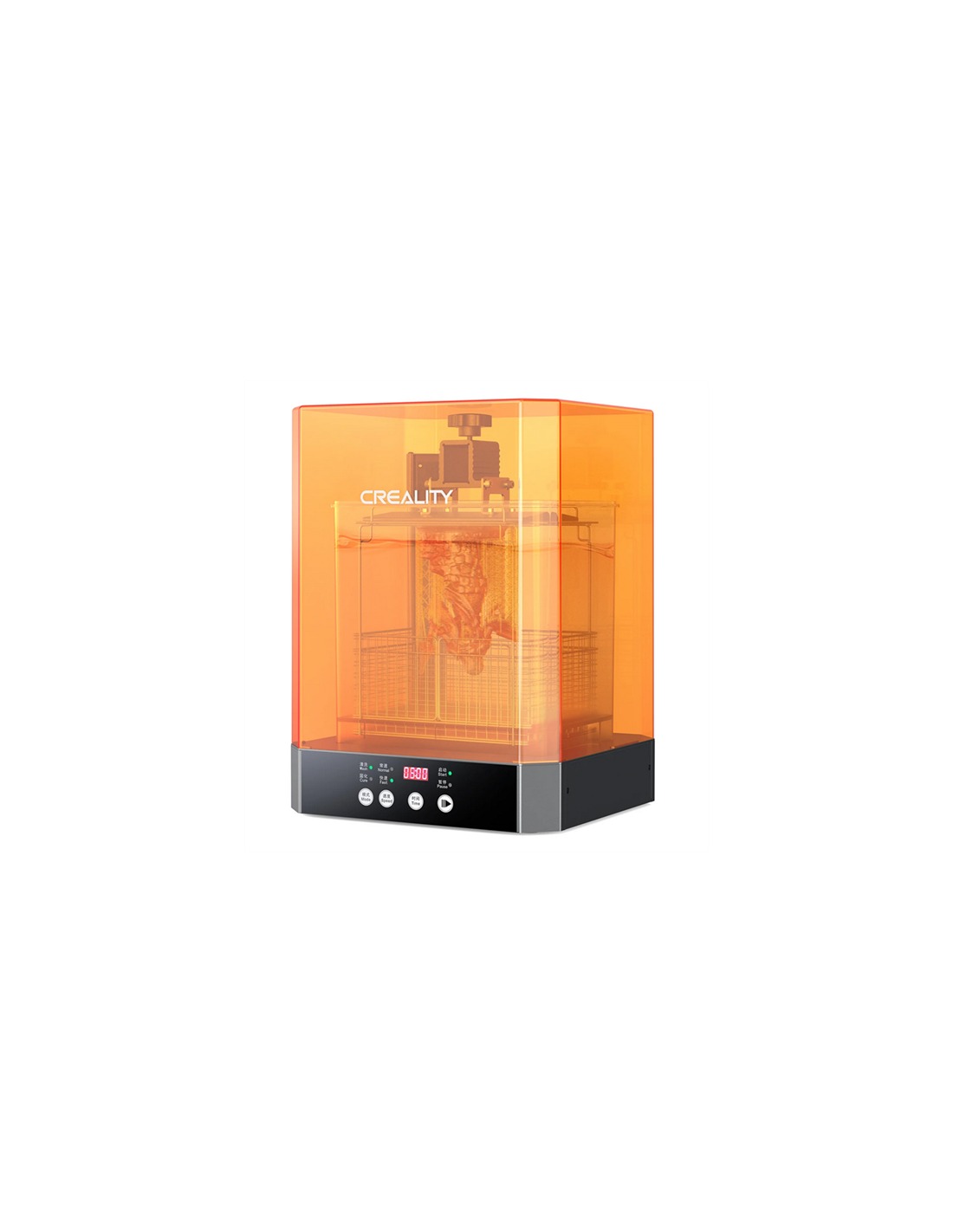

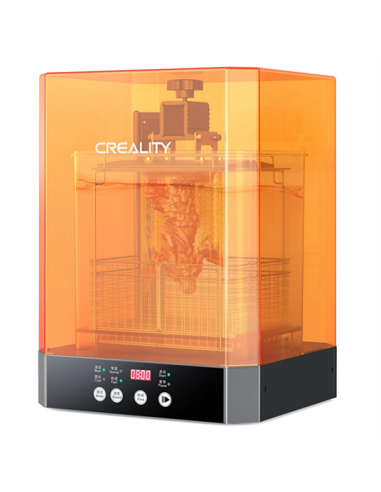

Creality UW-03 Wash & Cure Station
Streamline your resin 3D printing workflow with the Creality UW-03 Wash & Cure Station. This efficient 2-in-1 solution combines powerful washing capabilities with advanced curing technology, making post-processing faster, easier, and more effective. Whether you’re refining intricate miniatures or larger models, the UW-03 delivers professional-grade results with precision and reliability.
Key Features
1. Larger, Versatile Turntable
- Accommodates larger prints or multiple models simultaneously.
- Curing Volume: 10.64 L (215 x 165 x 300 mm), 13.7% larger than comparable devices.
- Features a raised-edge design to prevent models from dislodging during washing.
2. Powerful Magnetic Propeller
- Generates a 500 rpm vortex for removing stubborn resin residue.
- Increases water speed by 31% for thorough cleaning of complex parts.
3. Enhanced UV Curing Technology
- Equipped with 18 optimised 405nm UV LEDs for intense, even exposure.
- 360° all-round curing ensures every angle of the model is treated uniformly.
- Delivers light intensity of over 20000 µW/cm² at the centre.
4. Flexible Washing Options
- Washing basket for full use of the 6.72 L washing volume (210 x 160 x 200 mm).
- Supports direct washing of prints still attached to build plates (compatible with 8.9–10.3 inch platforms).
- Basket washing cycle for irregular shapes ensures precision and efficiency.
5. Safety and User-Friendly Operation
- Tinted lid blocks 99.9% of harmful UV light for added safety.
- Automatic shutoff when the lid is removed during curing.
- Sealed washing tank prevents spills, leaks, and evaporation.
- Physical buttons allow precise adjustment of speed and timer (5–30 minutes) for tailored post-processing.
Technical Specifications
| Specification | Details |
|---|---|
| Device Size | 325 x 303 x 436 mm |
| Net Weight | 5.4 kg |
| Washing Volume | 210 x 160 x 200 mm (6.72 L) |
| Curing Volume | 215 x 165 x 300 mm (10.64 L) |
| UV Wavelength | 405 nm |
| UV LEDs | 18 pcs |
| Timer Setting | 5–30 minutes |
| Speed Modes | Fast/Normal |
| Container Material | Polypropylene (PP) |
| Basket Material | Stainless Steel |
| Voltage | Input 100–240V; Output DC 24V |
| Rated Capacity | 60W |
| UI Languages | English, Mandarin |
Why Choose the Creality UW-03 Wash & Cure Station?
With its larger capacity, powerful cleaning system, advanced curing technology, and safety-first design, the Creality UW-03 is perfect for hobbyists and professionals alike. Experience cleaner, smoother, and stronger resin prints with minimal effort.
Upgrade your post-processing with the Creality UW-03 – the ultimate wash & cure station for exceptional results.
