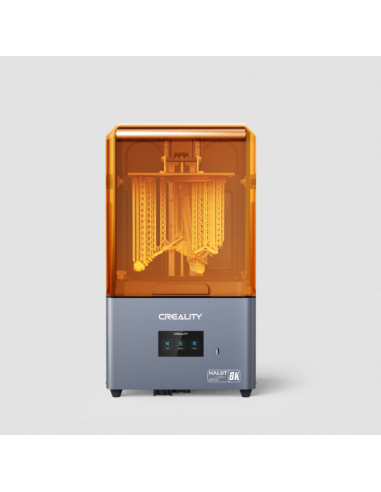

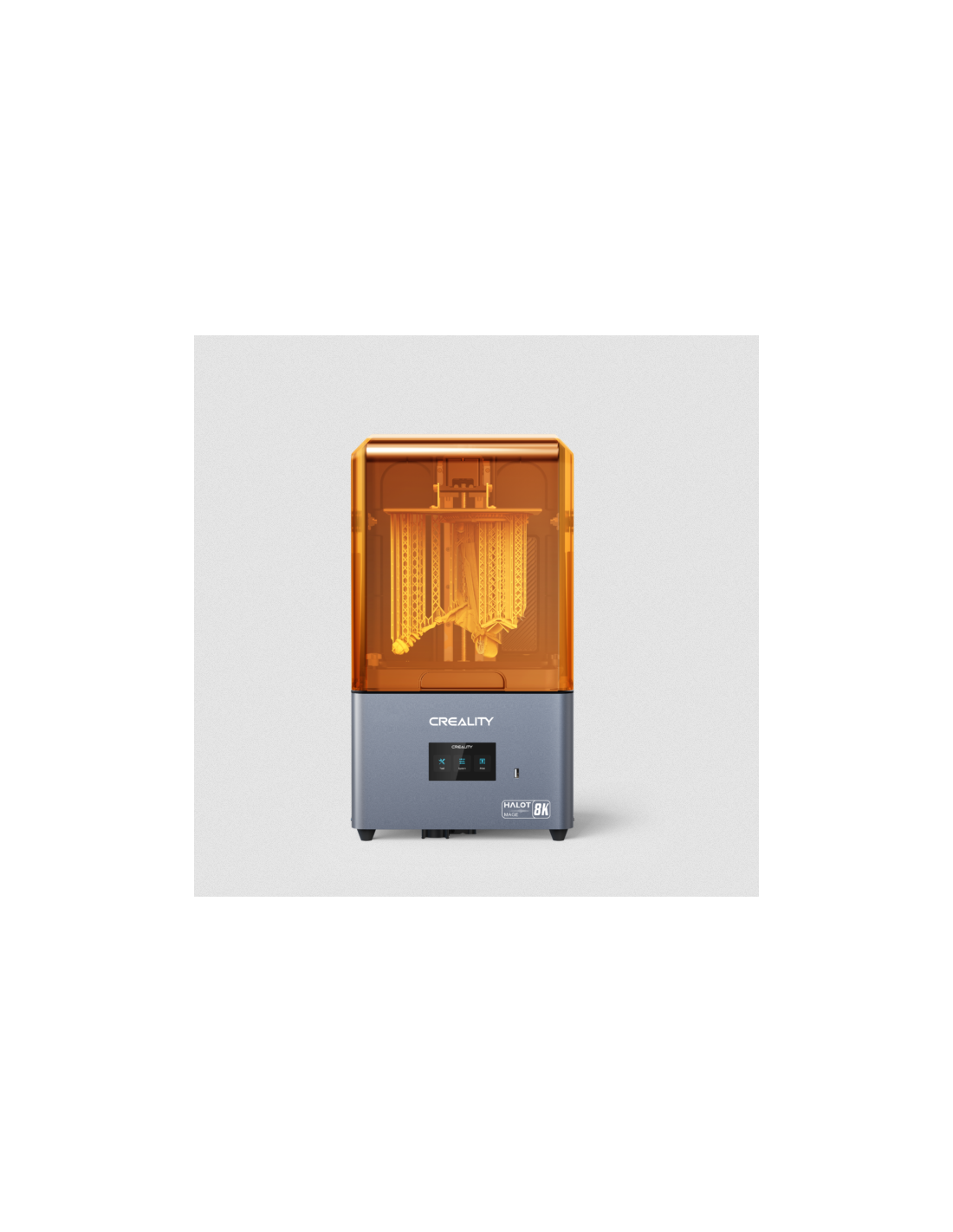

Creality Halot Mage 8K Resin 3D Printer

Creality Halot-Mage 8K Resin 3D Printer

Exceptional Precision and Large Build Volume

The Creality Halot-Mage 8K Resin 3D Printer stands out in the world of 3D printing with its impressive precision and large build volume. Featuring a 10.3″ LCD screen, this printer offers a substantial build size of 228 x 128 x 230mm (8.97 x 5.03 x 9.05 inches), providing 45% more printing space than typical 8.9″ resin printers. This expanded capacity allows for greater creative freedom and the ability to produce larger, more intricate models.

Ultra 8K High Precision

Equipped with an 8K mono LCD, the Halot-Mage boasts 33,177,600 pixels and a remarkable 29.7μm XY resolution. This is a significant enhancement over the 50μm resolution found in standard 4K printers. The printer excels in capturing fine details, bringing hair, fabric, skin textures, and organic shapes to life with stunning clarity.

Advanced Integral Light Source

The Creality Halot-Mage utilizes a self-developed integral light source with an intensity of 5000±10%μW/cm², ensuring uniform light distribution across the entire screen. This uniformity enables quick layer curing times of just 1-5 seconds with standard 405nm resin, significantly boosting printing efficiency while preserving intricate model details.

Ultra-Stable Z-Axis with Dual Linear Rails

The Z-axis of the Halot-Mage features dual linear rails and is driven by a powerful motor, ensuring exceptional stability. This design minimizes wobbling and handles larger and heavier prints with ease, resulting in consistently high-quality outputs.

Unique Orange “MageArch” Flip Lid

The Halot-Mage’s innovative orange "MageArch" flip lid is designed for easy, one-handed operation. It eliminates the need to place the cover aside and effectively blocks 99.89% of ambient UV light, minimizing interference. This feature makes the printer safe and user-friendly, particularly for beginners and children.

Odor-Free Printing Environment

With a built-in activated carbon filter that is 5.8 times larger than standard filters, the Halot-Mage efficiently absorbs and filters resin odors and fumes. This creates a fresh, odor-free printing environment. Additionally, a vent hole at the back allows for connection to a vent tube, further enhancing air quality.

Comprehensive Software Support

The Halot-Mage comes with Creality’s self-developed HALOT BOX software, featuring an intuitive 4-stage workflow and numerous presets for an enhanced user experience. Additionally, users receive a 3-month VIP subscription to CHITUBOX Pro for free. CHITUBOX Basic is fully compatible with the Halot-Mage, offering a broader range of slicing software options.

Specifications

• Printing Technology: LCD MSLA
• Build Volume: 228 x 128 x 230mm (6712cm³)
• Product Dimensions: 333 x 270 x 608mm
• Package Dimensions: 420 x 350 x 675mm
• Net Weight: 12kg
• Gross Weight: 15kg
• Printing Speed: 1-5s/layer
• Layer Height: 0.05-0.15mm
• LCD Screen: 10.3″ monochrome screen
• LCD Resolution: 8K (7680 x 4320)
• XY Resolution: 29.7μm
• Light Source: Integral Light
• Light Intensity: 5000±10%μW/cm²
• File Transfer: USB drive
• Air Purifier: Yes
• Input Power: 100W
• Resin: 405nm resins
• Slicing Software: HALOT BOX, CHITUBOX, Lychee Slicer
• Computer OS: Windows/Mac
• File Formats: STL/OBJ
• Display Screen: 4.3″ color touchscreen

The Creality Halot-Mage 8K Resin 3D Printer is designed to meet the needs of both hobbyists and professionals, delivering exceptional precision, large build volumes, and a range of advanced features for a superior 3D printing experience.
