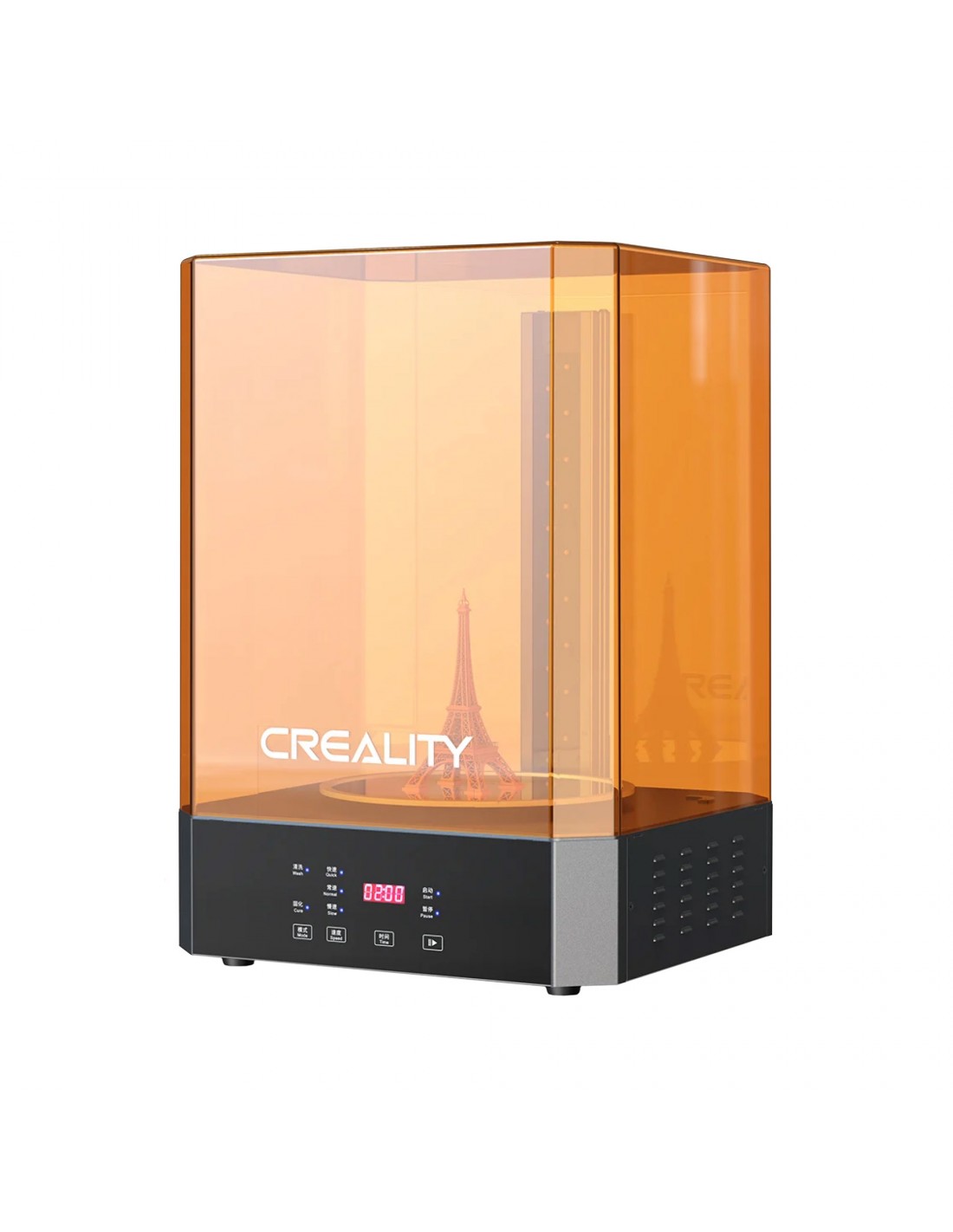

Creality UW-02 Wash and Cure Station: Streamlining Resin 3D Printing Post-Processing
Elevate your resin 3D printing post-processing with the Creality UW-02 Wash and Cure Station. This advanced machine combines efficient washing and curing processes, offering a seamless and automated solution for your resin-printed parts. Here's a detailed look at its features and technical specifications:
Key Features:
-
Large Washing and Curing Space:
- 10.1-inch large space for washing and curing to meet the processing demands of larger-scale models.
- Washing mode features an integrated automatic function.
- Curing mode cures 3D printed parts by precisely controlling light, speed, and time.
-
360° All-Around Curing:
- Utilizes a 360° specular reflections curing rotating platform with 385nm and 405nm dual-band LED beads.
- Ensures all-around curing without dead bands, enhancing the curing efficiency.
-
Dual-Band UV Lamp Beads:
- Dual-band UV lamp beads strip with 385nm and 405nm wavelengths.
- Increased entire lens strip for more uniform and concentrated UV light source irradiation, resulting in complete model curing.
-
Adjustable Washing Container:
- 1.65-litre adjustable tank ideal for cleaning large parts.
- Adjustable tank height to accommodate varying resin quantities, eliminating the need for complete filling.
- Sealed container and lid prevent cleaning solution volatilization, allowing for repeated use.
-
UV Curing from All Angles:
- Numerous 385nm and 405nm UV lamps ensure quick and easy UV curing.
- 360° UV curing through a rotating "mirror" platform precisely controls light, speed, and time.
-
User-Friendly Interface:
- Accessible interface with both automated and manual modes.
- Touch button controls and LED indicators for easy operation.
- UV filter cover prevents light damage, ensuring user safety.
-
Safety Features:
- UV lamps automatically turn off when the cover is removed.
- Prevents accidental exposure to UV light, ensuring user safety during operation.
Technical Specifications:
- Machine Size: 325 x 295 x 485mm (Fully-enclosed)
- Control Method: Touch Button, LED Indicator
- Platform: 360° Rotatable
- Washing Size: 240 x 160 x 200mm
- Curing Size: Φ200 x 300mm
- Machine Weight: 8 kg
- UV LED Lights: 405nm, 385nm (12 bulbs each)
- Power Supply: 60W
- Input: 100-240V
- Output: 24V/2.4A
The Creality UW-02 Wash and Cure Station is a highly recommended tool to automate the post-processing of resin printed parts, saving both time and money. Its advanced features and user-friendly interface make it an indispensable companion for achieving high-quality results in resin 3D printing applications.
