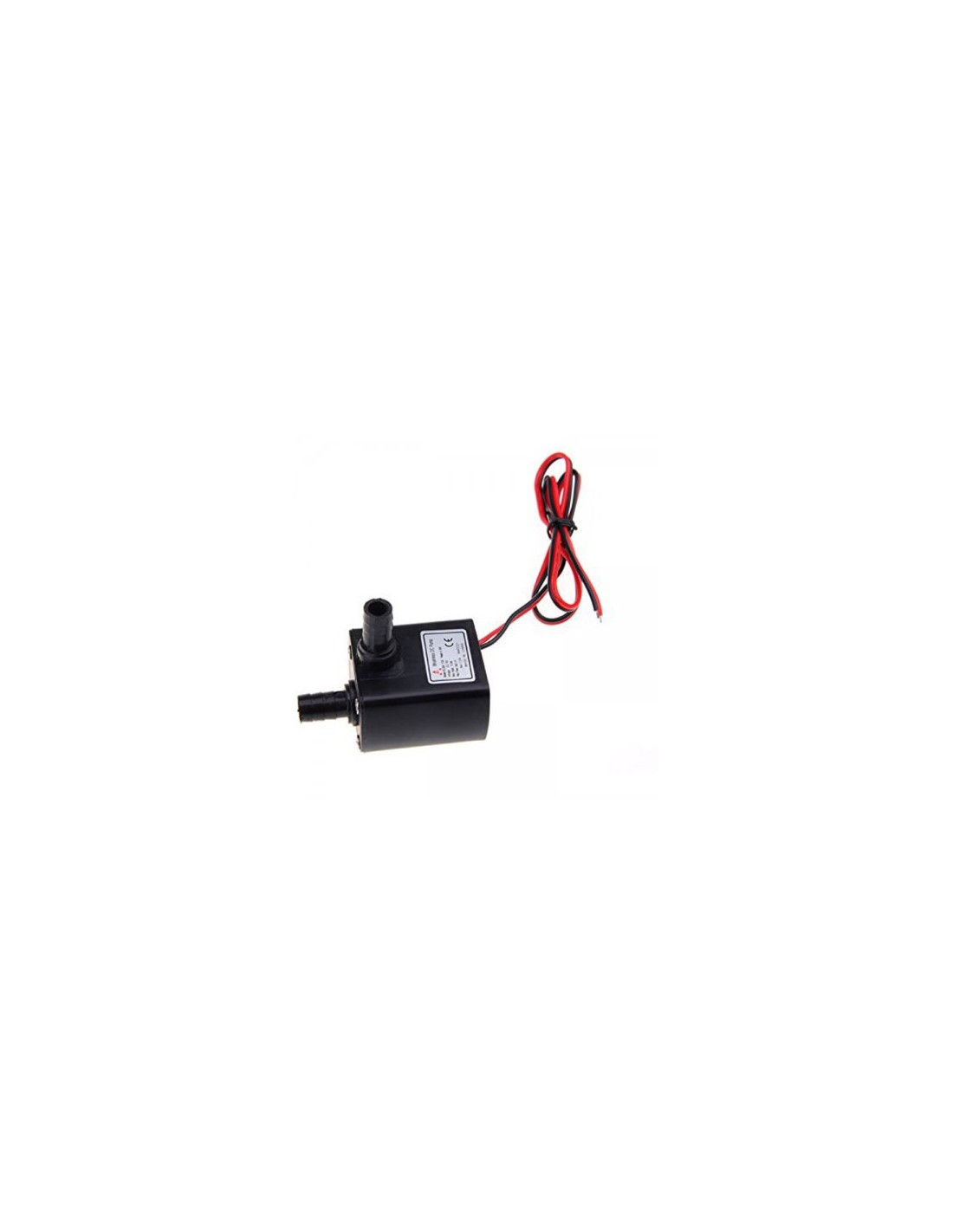

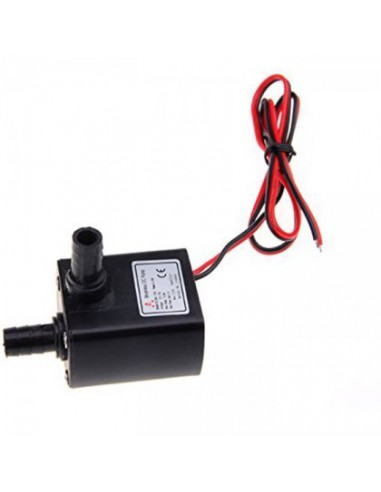

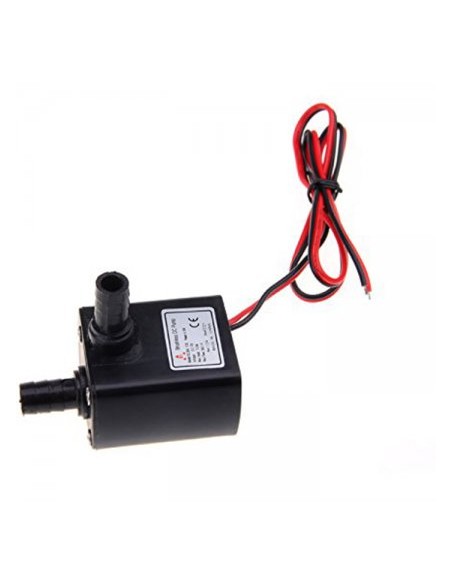

Introducing our cutting-edge Brushless Permanent Magnet Rotor Pump, a marvel of engineering that boasts superior performance, durability, and versatility. Built to exceed expectations, this pump is designed to cater to a wide range of applications with its advanced features and robust construction.
Technical Specifications:
- Motor Type: Brushless, permanent magnet rotor
- Working Life: More than 30,000 hours
- Shaft: High-performance ceramic shafts, closed and statically sealed to prevent leakage issues
- Design: Amphibious design, diving installed, fully waterproof
- Power Consumption: Low power consumption at 4.2W
- Noise Level: Low noise emission, less than 35dB
- Pump Material: Durable ABS for long-lasting performance
- Conditions of Use: Continuous operation
- Fluid Compatibility: Suitable for water, oil, gasoline, acid, and alkali solutions
- Working Temperature: 0 ~ 75 °C
- Rated Voltage: 12V DC

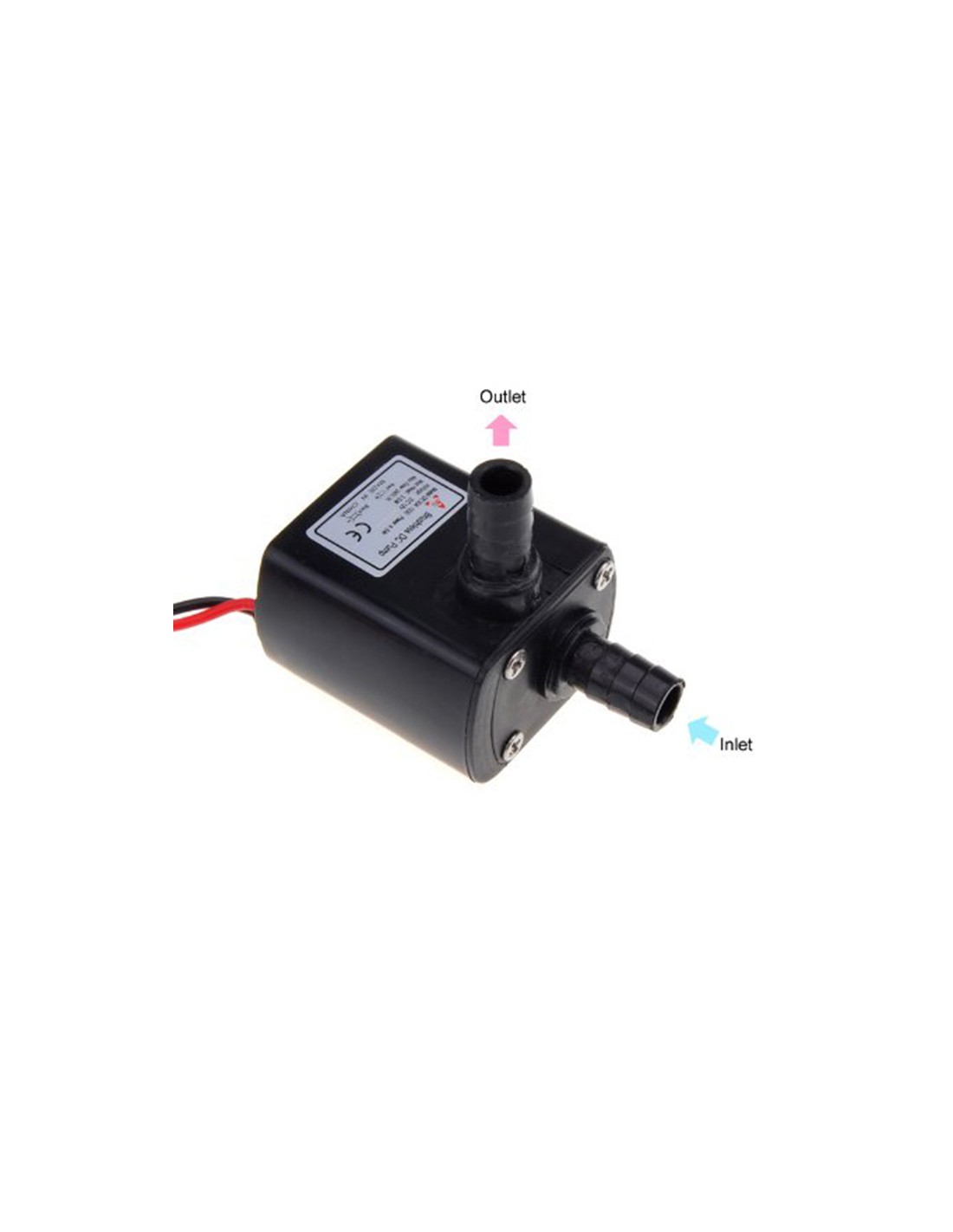

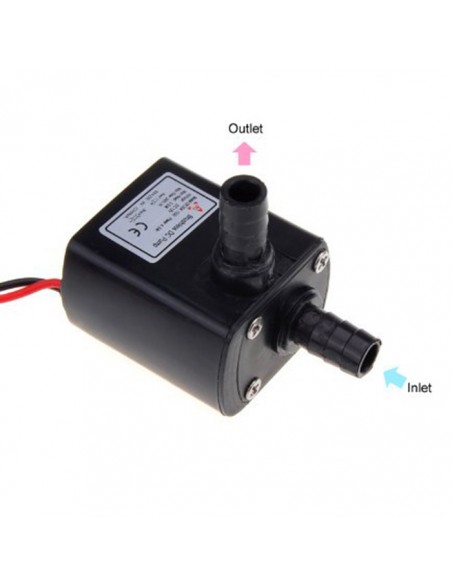

- Inlet Diameter: 8.5mm
- Outlet Diameter: 8.5mm
- Maximum Rated Current: 350mA
- Maximum Flow: Impressive 240L/H
- Highest Lift: Powerful 300CM
- Noise Level: Less than 40 decibels (up to 35 decibels)
- Waterproof Rating: IPX8 (dive installation)
- Pump Life: Over 10,000 hours
- Power Sources: Compatible with solar panels, DC power, and batteries

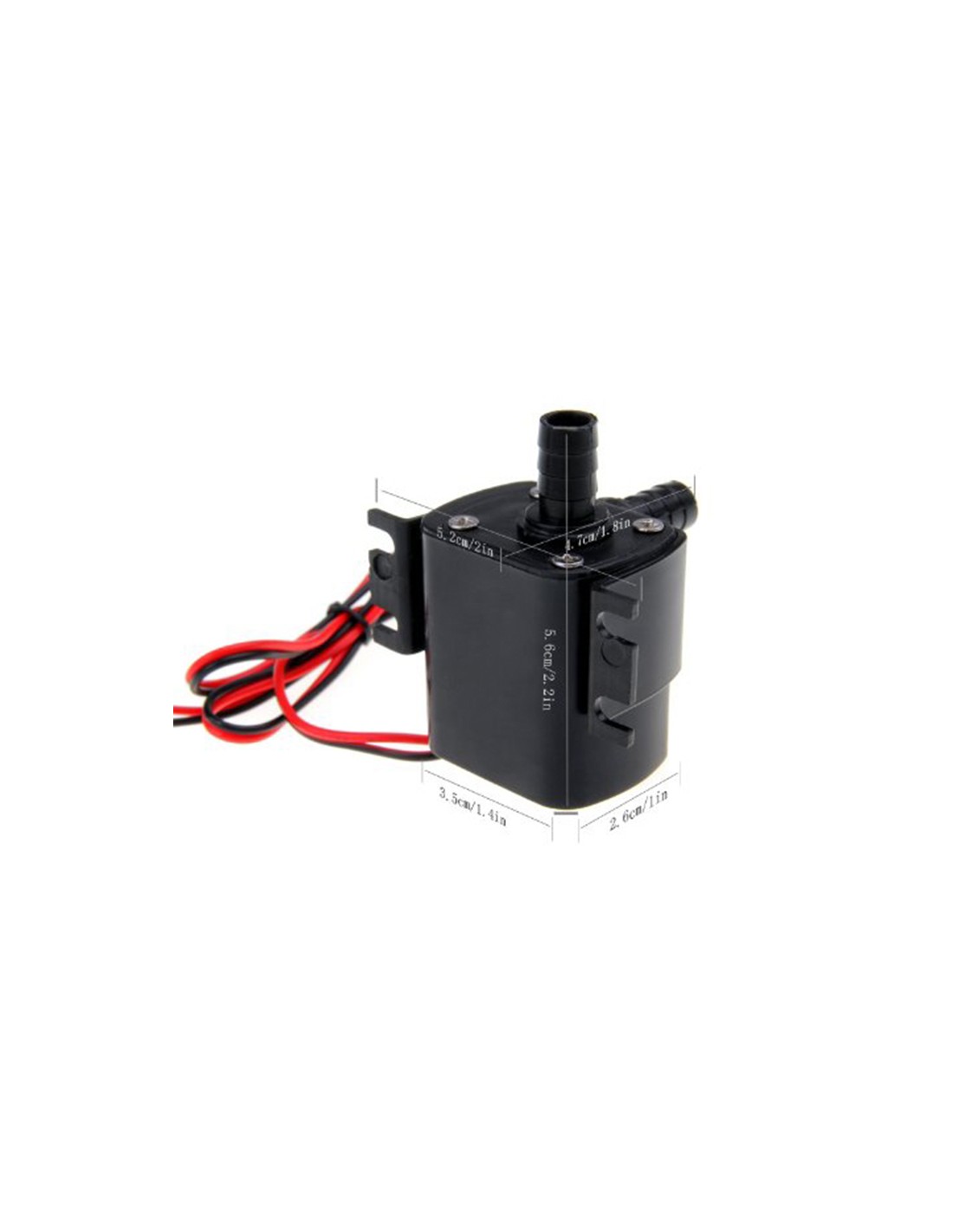

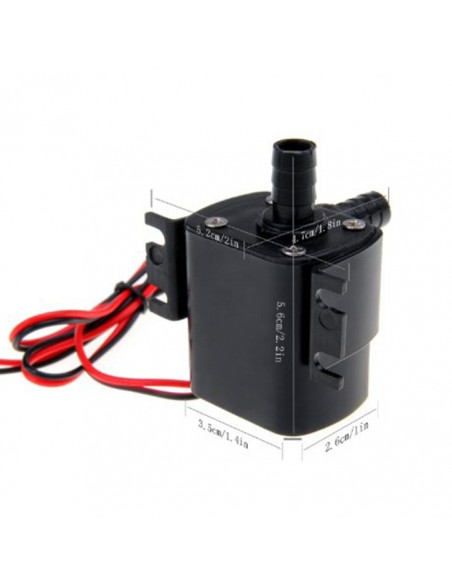

- Dimensions: Compact size at 5.5 cm x 3.5 cm x 4.5 cm
- Net Weight: Lightweight at 75g
Whether you need a reliable solution for water circulation, oil transfer, or other fluid handling tasks, this Brushless Permanent Magnet Rotor Pump is your go-to choice. Its exceptional performance, durability, and versatility make it an invaluable asset for various applications. Embrace innovation and reliability with this state-of-the-art pump for all your fluid handling needs.
