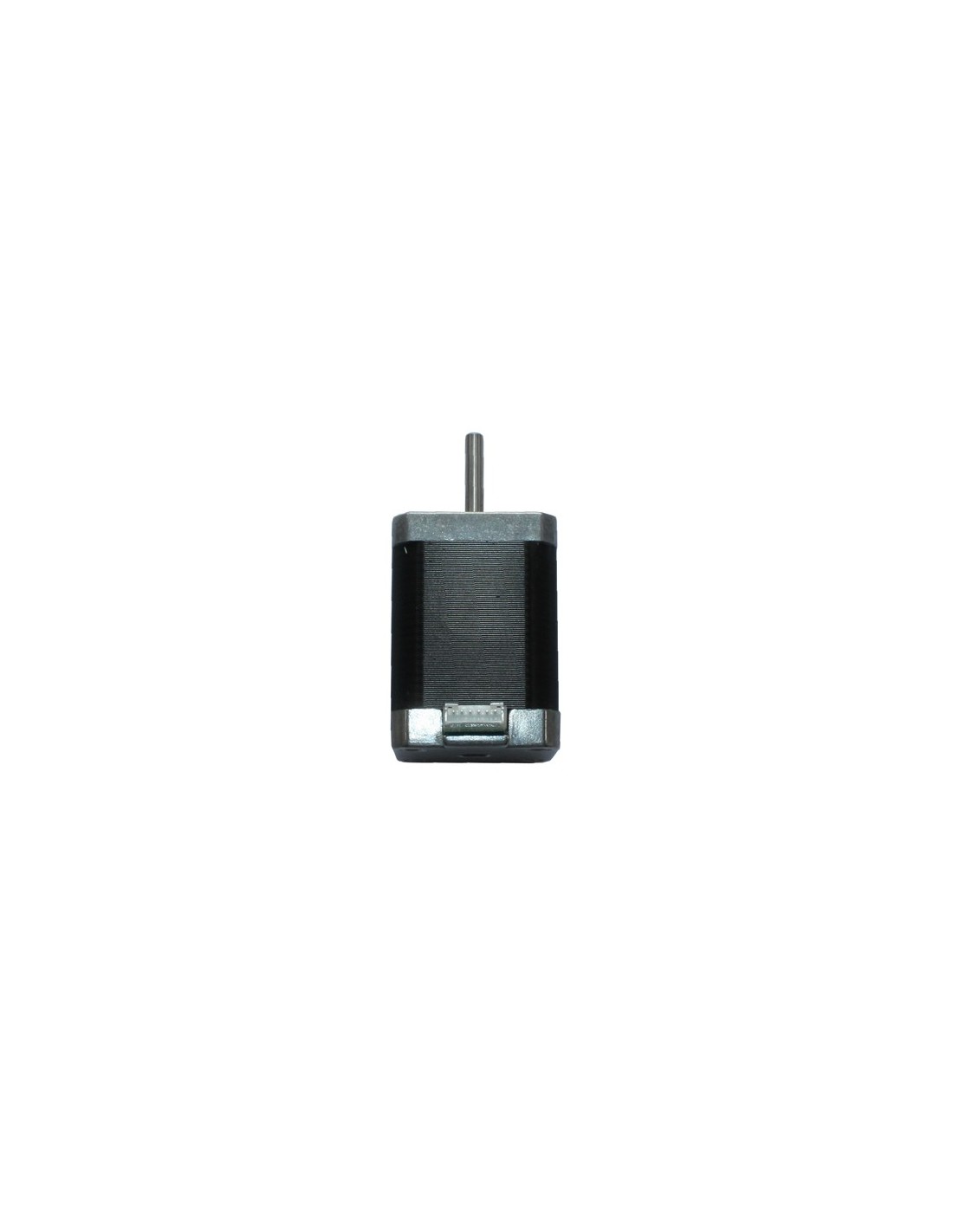

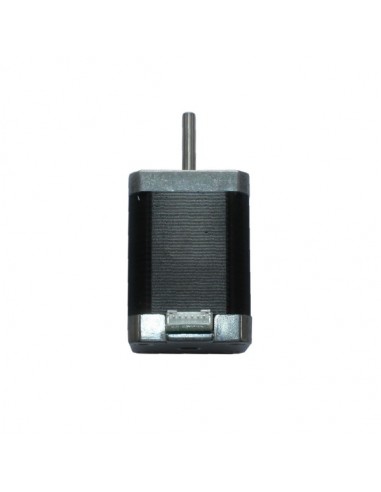

NEMA17 60mm 5mm bore Stepper Motor

NEMA17 60mm 5mm bore Stepper Motor

The NEMA 17 60mm stepper is a good choice for many high torque low speed applications.

3DP-00033
Out-of-Stock
R565.00
Tax included

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R1000

To your door delivery. South Africa Only.

  Guaranteed Customer Support

Need help? See our Support Page.

custom html

Description

The NEMA 17 60mm stepper is a good choice for many high torque low speed applications. Its more powerful than the popular 2.8 V 1.68A 4.4kg.cm RepRap stepper motor.

Specifications:

  • Motor Depth: 60mm, the longest body and the highest torque of NEMA 17 stepper motors
  • Steps Per Revolution: 200
  • Phases: Two Phases with 4 lead wires, bipolar stepper.
  • Step Angle: 1.8 degree, working with A498tomro8 stepper driver, 3200pps per revolution, high resolution for 3D printers.
  • Rated Current 1.5A
  • Rated Voltage: 4V
  • Holding Torque: 0.65N.m or 6.5Kg.cm
  • Shaft: 5mm single flat, used with 5mm bore pulleys.
