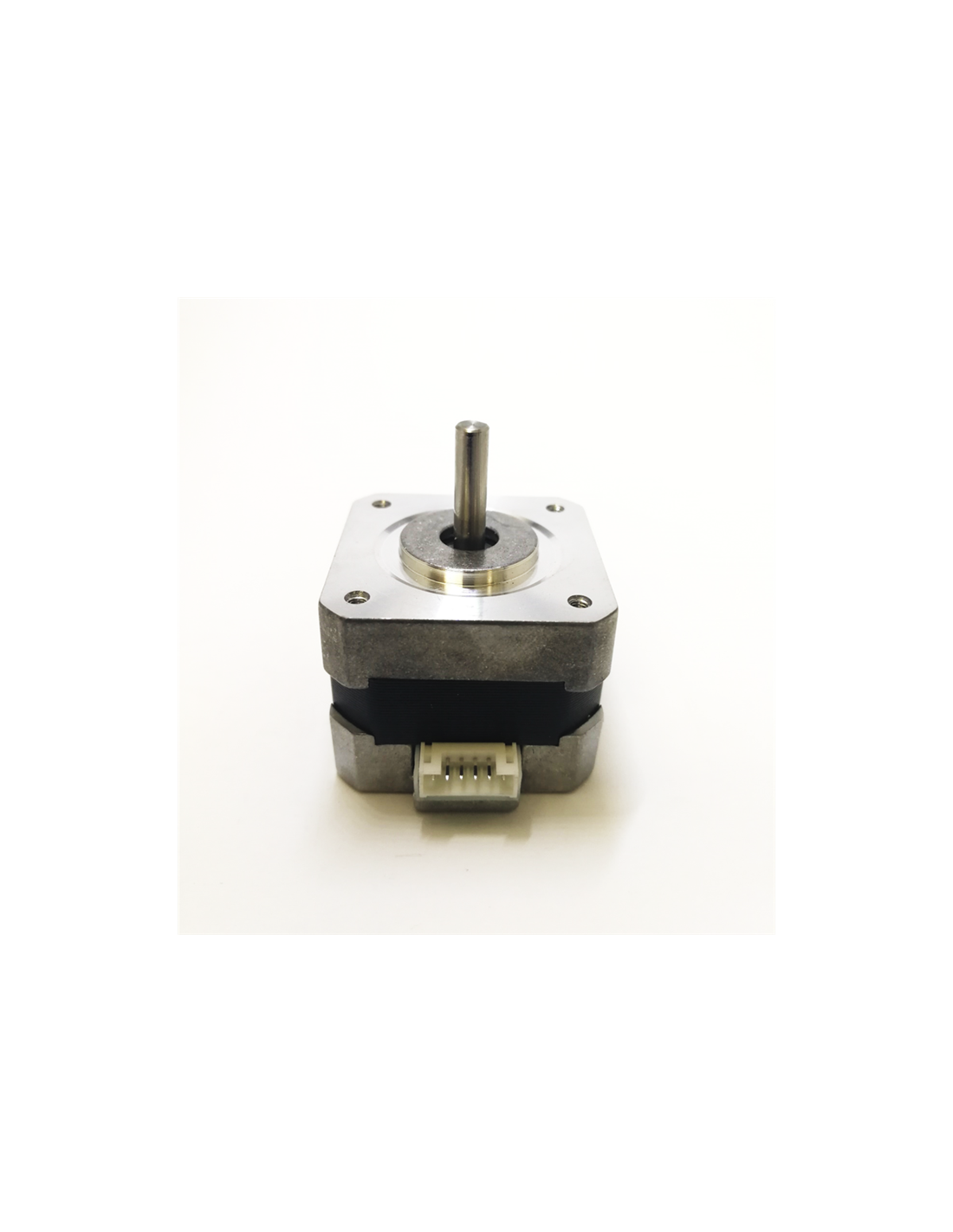

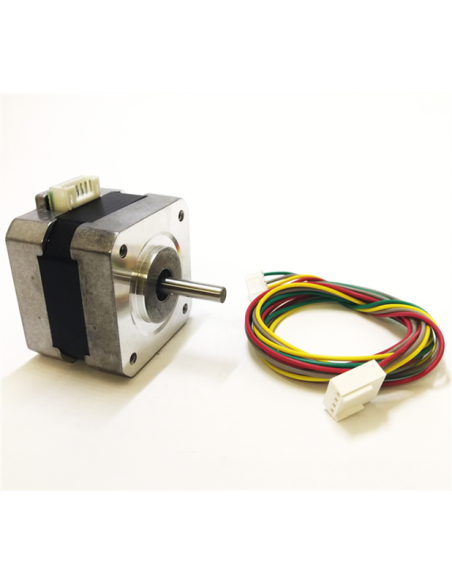

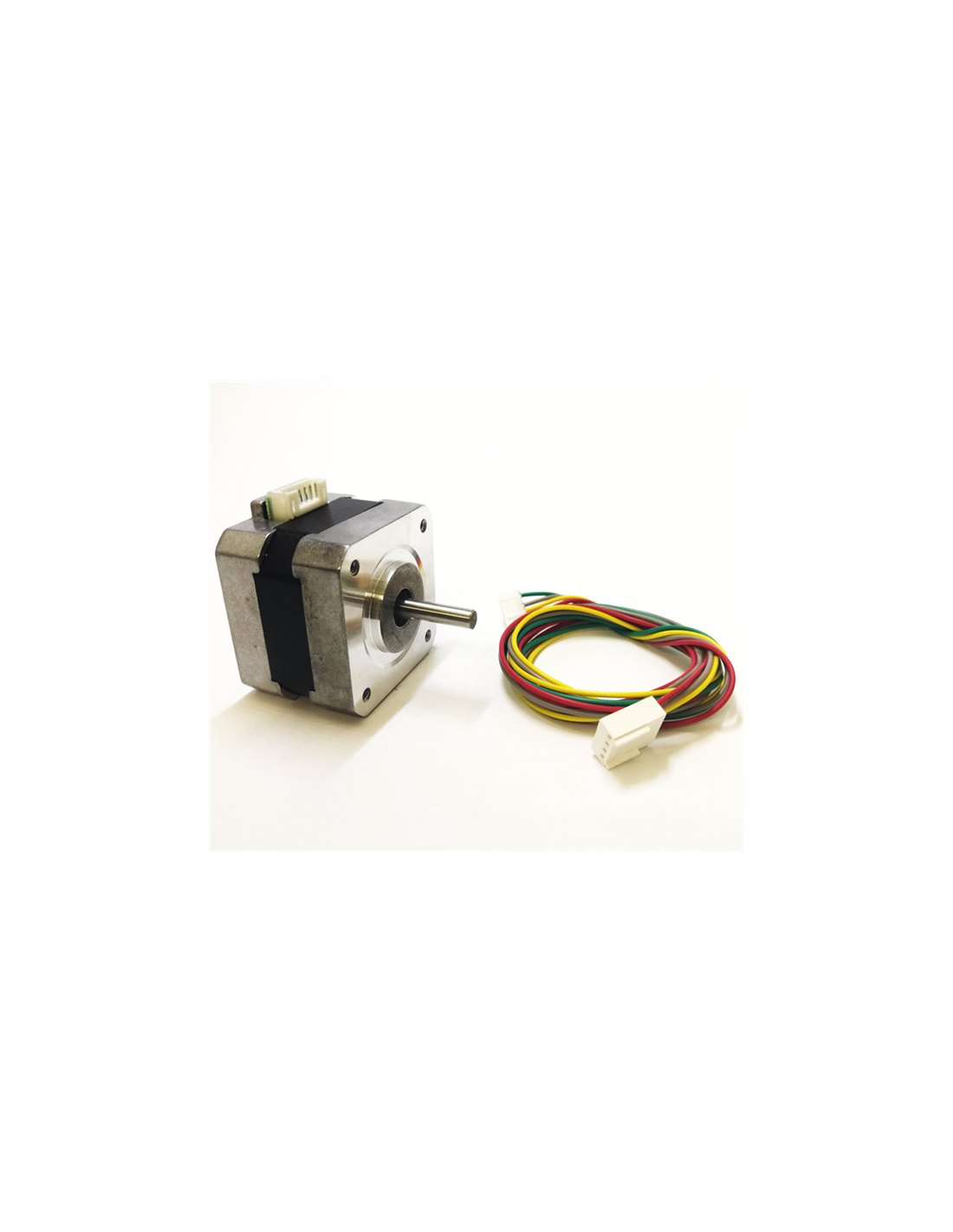

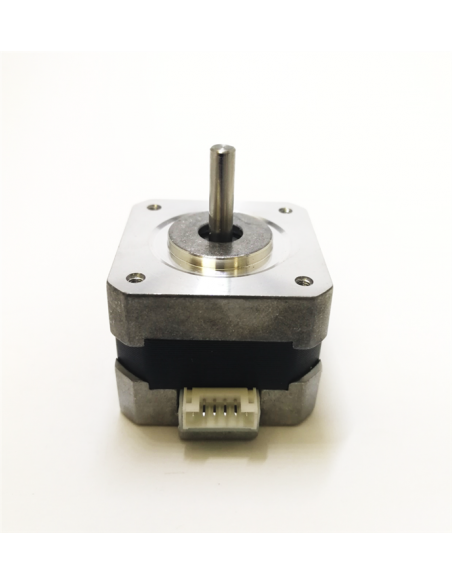

NEMA17 34mm 5mm bore Stepper Motor
NEMA17 34mm 5mm bore Stepper Motor

NEMA17 34mm 5mm bore Stepper Motor

3DP-00146
Out-of-Stock
R230.00
Tax included

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R1000

To your door delivery. South Africa Only.

  Guaranteed Customer Support

Need help? See our Support Page.

custom html

Description

Round Shaft for Ultimaker Extruder. Reprap, Makerbot and more 3D Printers

Specifications:
  • 200 steps per revolution (1.8 deg/step)
  • 2 Phase 4 wires
  • Rated Voltage 4.83V
  • Rated Current 0.84A
  • Phase Resistance: 5.75 ± 10% (20º C)
  • Phase inductance: 9.3 ± 20% (1kHz 1 V rms)
  • Holding torque: 0.28 Min.
  • Shaft diameter: 5mm 0.188" (3/16")
  • Shaft length: 22mm
  • Motor depth: 34mm
  • Bipolar
