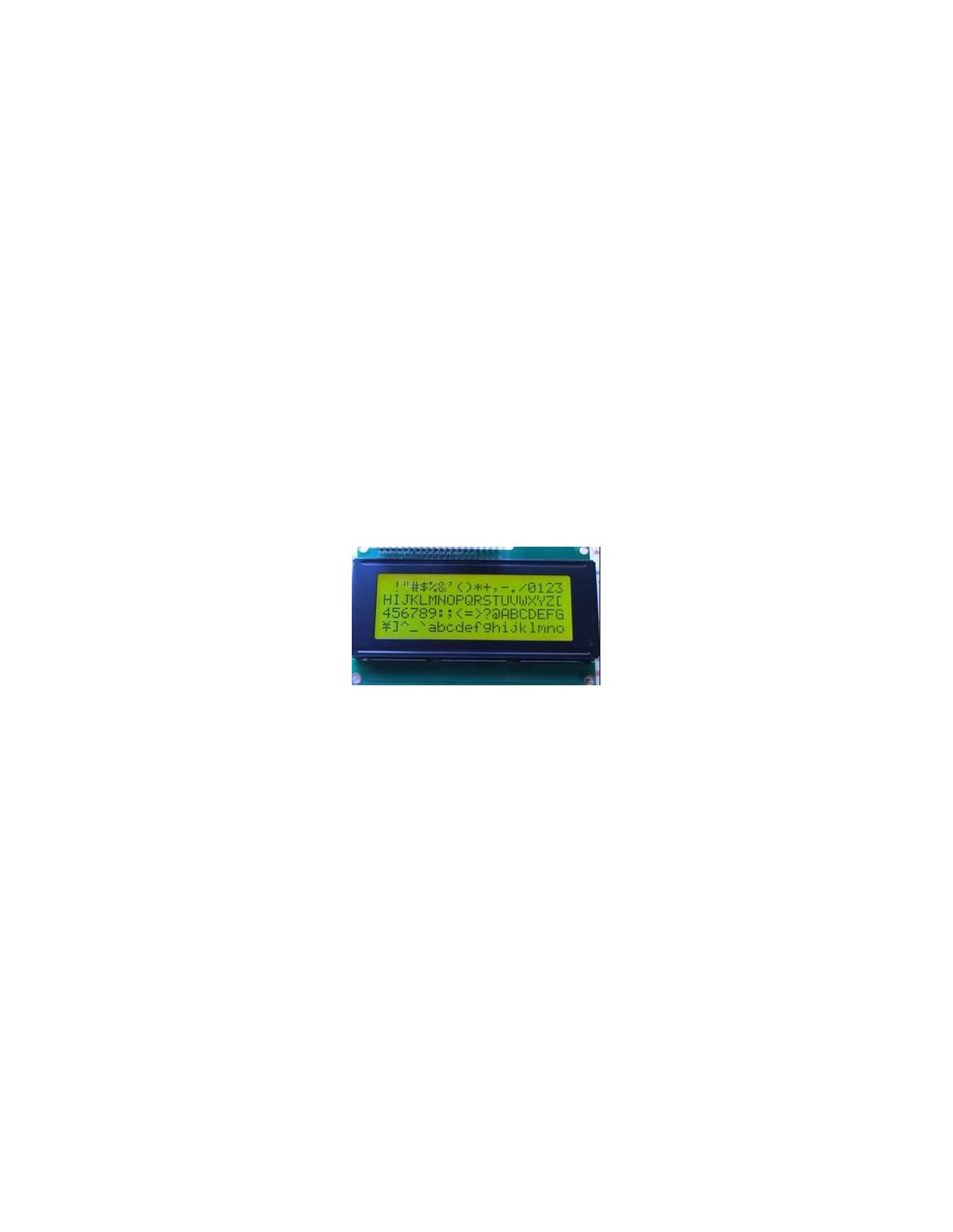

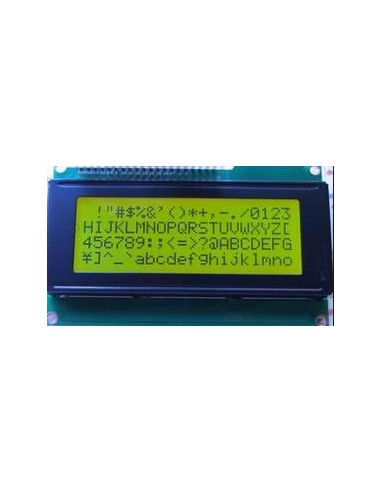

LCD 4x20 (Arduino Compatible)

LCD 4x20 (Arduino Compatible)

DIS-00054
Last items in stock
R110.00
Tax included
3 Items

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R1000

To your door delivery. South Africa Only.

  Guaranteed Customer Support

Need help? See our Support Page.

custom html

Description

Compared to 1602 LCD, in one conclusion, both are character-type LCD, but more words you have in the screen.

Features:
  • Package:COB
  • Mechanical maximum dimension:98 x 60 mm
  • Connection: conducting adhesive-type
  • Screen dimension: 76 x 26 mm
  • Connection: one single row in parallel connection
  • Dot : 0.55 x 0.55 mm
  • Back-light type: EL/LED
  • Character : 29.5 x 47.5 mm
  • Operational Volt: +5V/+3.3V
  • Display color: Yellow-Green
  • Operation Temperature: -10 ~ +60oC
  • Controller: SPLC780
  • Storage Temperature: -20 ~ +70oC
Pin Definition:
  • 1 – VSS -Ground for Logic(0V)
  • 2 -VDD -Power supply for Logic(+5V)
  • 3 -V0 -Power supply for LCD Driver
  • 4 -RS -H: Data；L: Instruction Code
  • 5 -R/W -H: Read; L: Write
  • 6 -E -Enable signal
  • 7~14 – DB0~DB7 – Data Bus Line
  • 15 – A Backlight Power(+5V)
  • 16 – K Backlight Power(0V)
