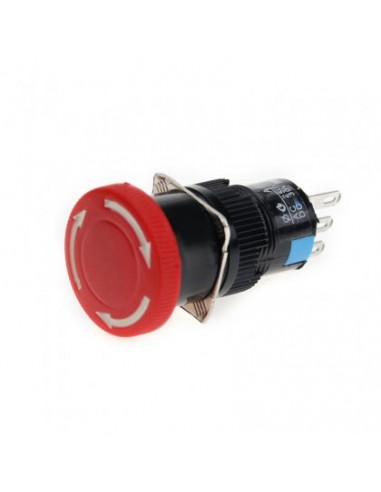

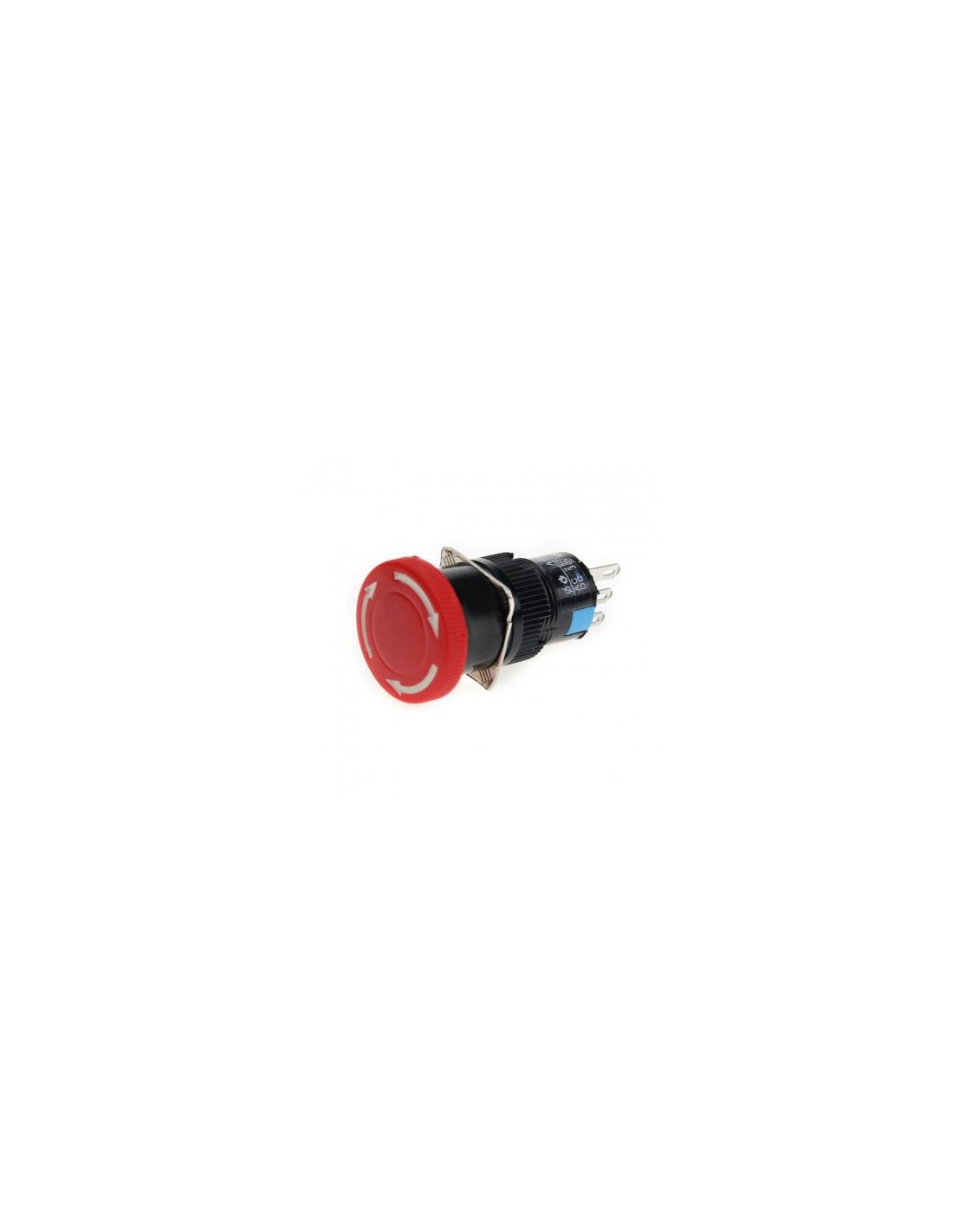

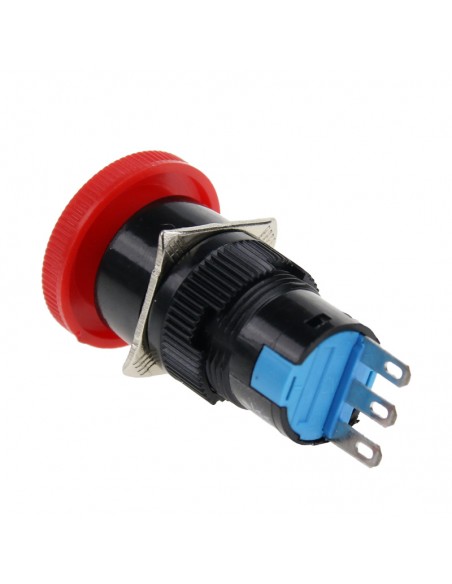

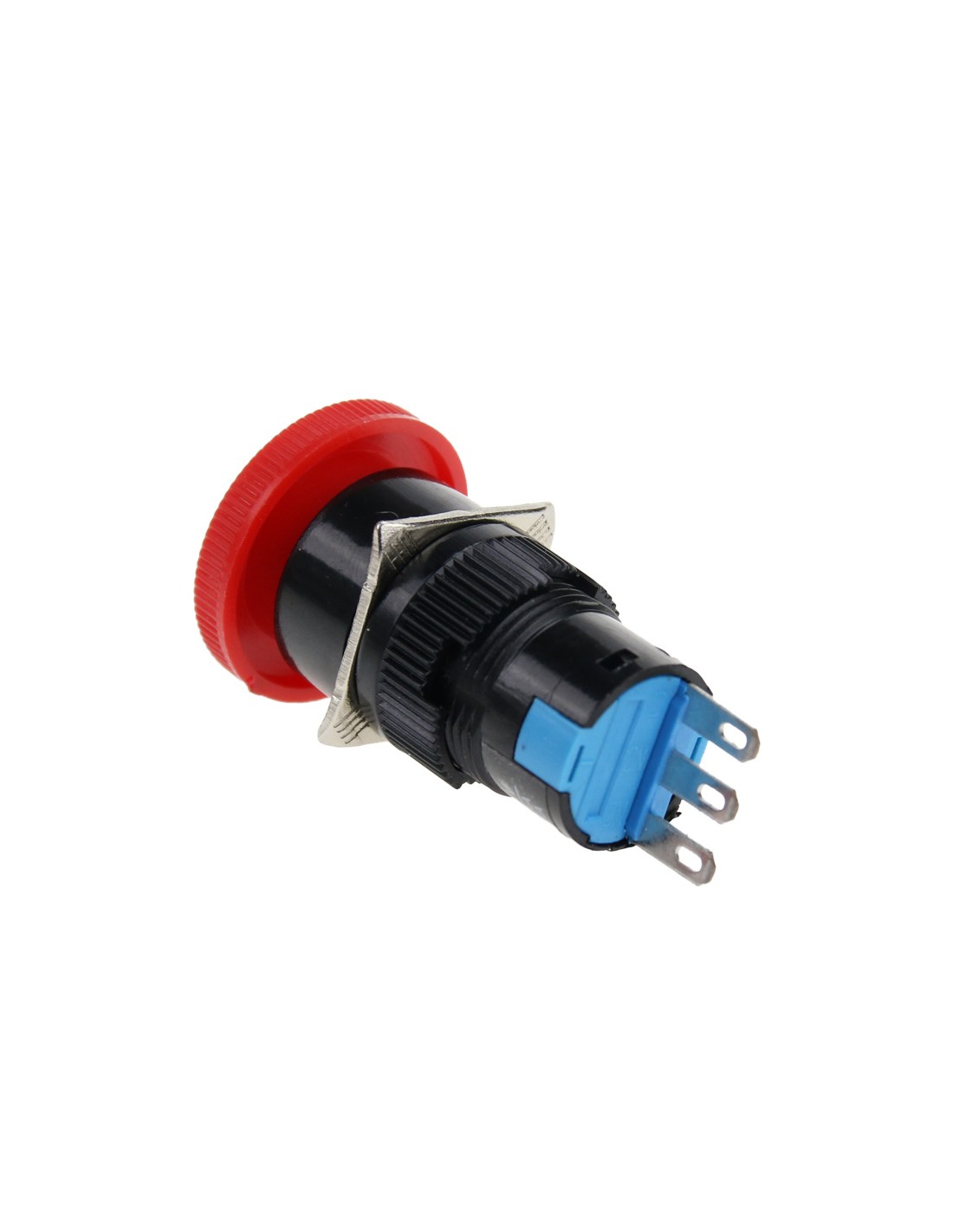

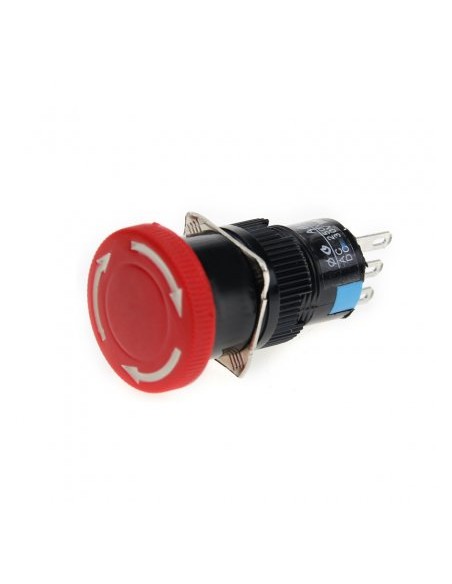

Introducing the LA16Y-11ZS Mushroom Emergency Stop Self-Reset Rotary Button Switch - a reliable and visually striking solution for emergency stop applications in a variety of projects. This self-locking emergency stop switch features a compact design with a vibrant red button, making it an ideal choice for safety-critical environments and machinery.
Key Features:
-
Emergency Stop Functionality: Designed for use as an emergency stop switch, this mushroom-style push button provides quick and intuitive activation to ensure the safety of operators and equipment.
-
Self-Locking Mechanism: Once pressed, the button locks into place, preventing accidental resets and ensuring that the emergency stop remains engaged until intentionally released.
-
Compact Design: With a 16mm mounting hole, this button switch offers a compact footprint that is easy to integrate into control panels, machinery, and other equipment.
-
High-Quality Construction: Constructed with quality materials, this switch is built to withstand the rigors of industrial environments, providing reliable performance over an extended service life.
Quick Spec:
- Rating: 250VAC @ 3A

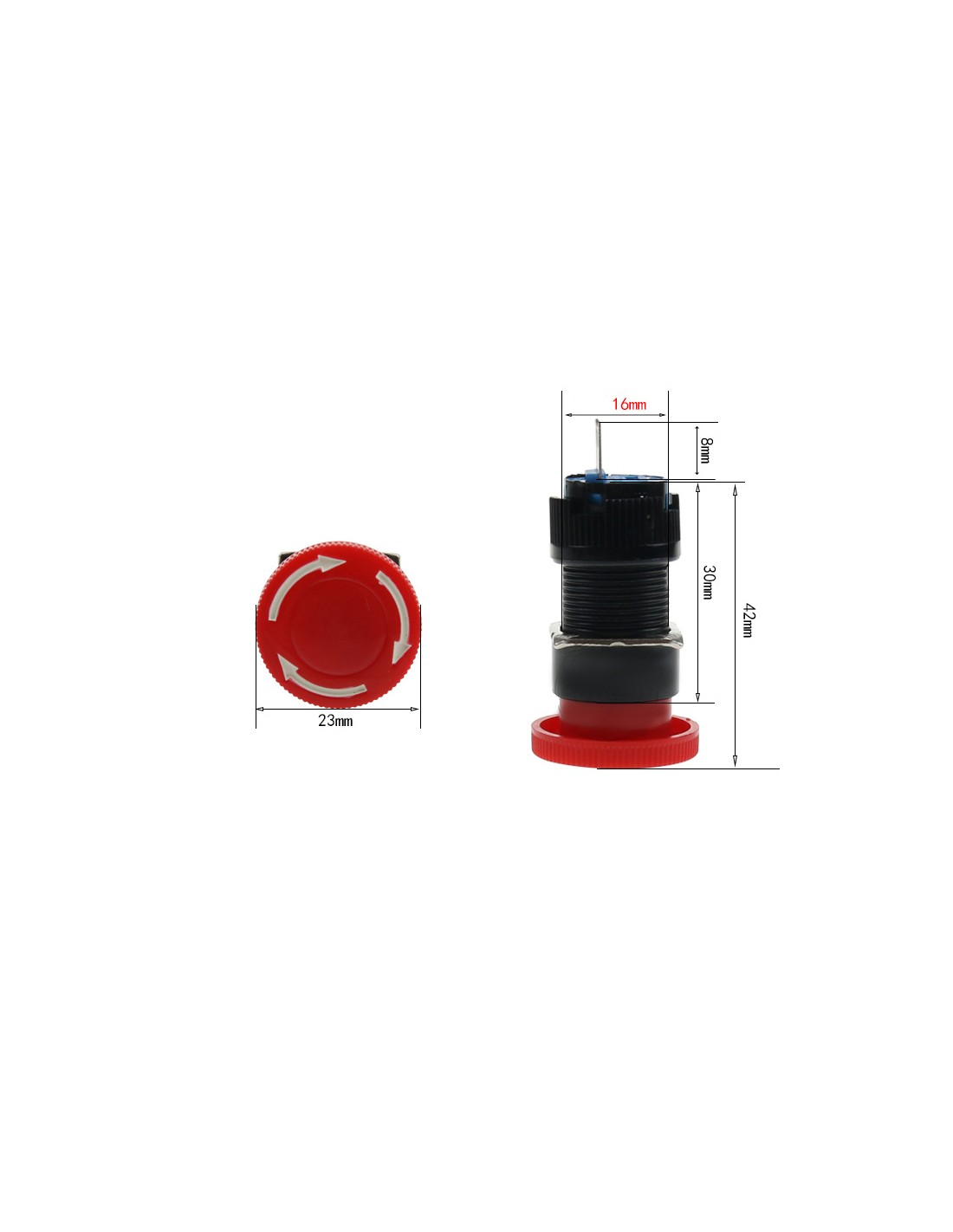

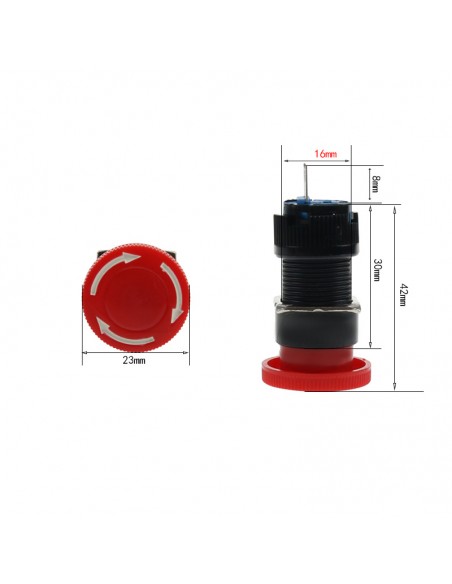

- Mounting Hole: Φ16mm
- Contact Resistance: ≤50mΩ max (initial)
- Insulation Resistance: ≥100MΩ min DC 250V
- Dielectric Strength: AC1500V (50/60Hz for 1 minute)
- Operating Temperature: -25℃ to +85℃
- Electrical Life: 50,000 cycles
Whether you're building a control panel for machinery or upgrading safety features in your workspace, the LA16Y-11ZS Mushroom Emergency Stop Switch offers the reliability and performance you need to keep operations running smoothly and safely. Trust in its robust construction and intuitive design to provide peace of mind in emergency situations.
