Step-Down Super Mini Module 4.75V-23V DC-DC

POW-00090
In Stock
R28.00
Tax included
12 Items

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R1000

To your door delivery. South Africa Only.

  Guaranteed Customer Support

Need help? See our Support Page.

custom html

Description

Specifications:

  • Model Name: Mini360 ultra-small DC-DC synchronous buck module
  • Module Properties: non-isolated buck
  • Rectifier mode: synchronous rectification
  • Input voltage: 4.75V-23V
  • Output voltage: 1.0V-17V
  • Output Current: Peak 3A, long 1.8A
  • Conversion efficiency: 96% (maximum)
  • Switching Frequency: 340KHz
  • Output ripple: 30mV (no load)
  • Load regulation: ± 0.5%
  • Voltage regulation: ± 2.5%
  • Working temperature: -40 ℃ to + 85 ℃

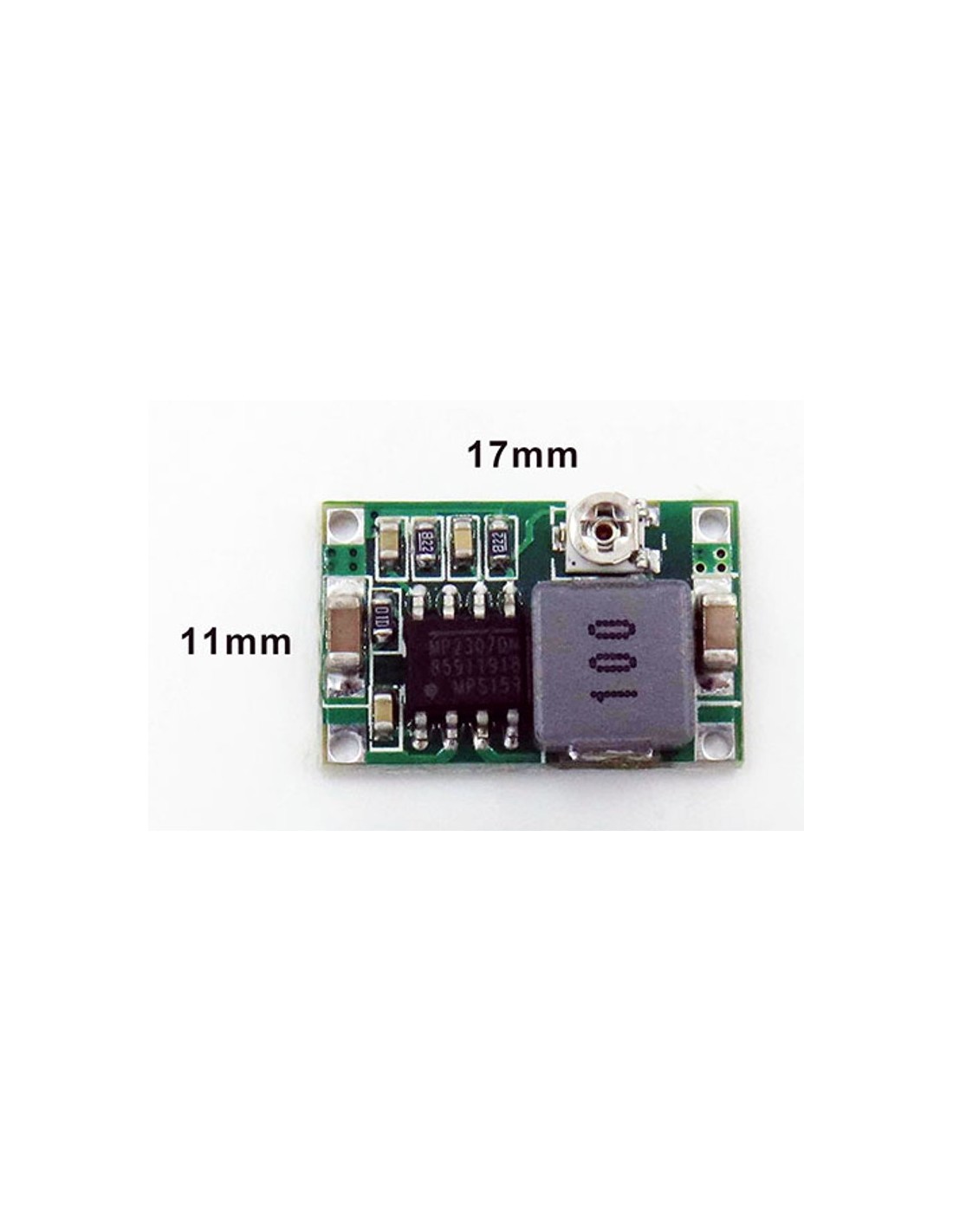

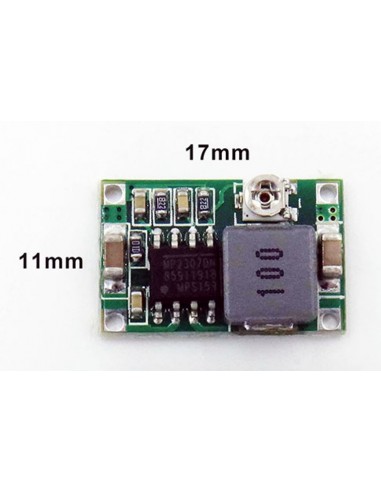

  • External dimensions: 17 * 11 * 3.8 (L * W * H) (mm)
Applications:
  • DIY mobile power
  • Car power
  • Communications equipment power supply
  • Volume and weight of the various demanding situations (such as aviation model, etc.).
Features:

Use one piece power inductor and synchronous rectifier control chip, smaller and more efficient.
