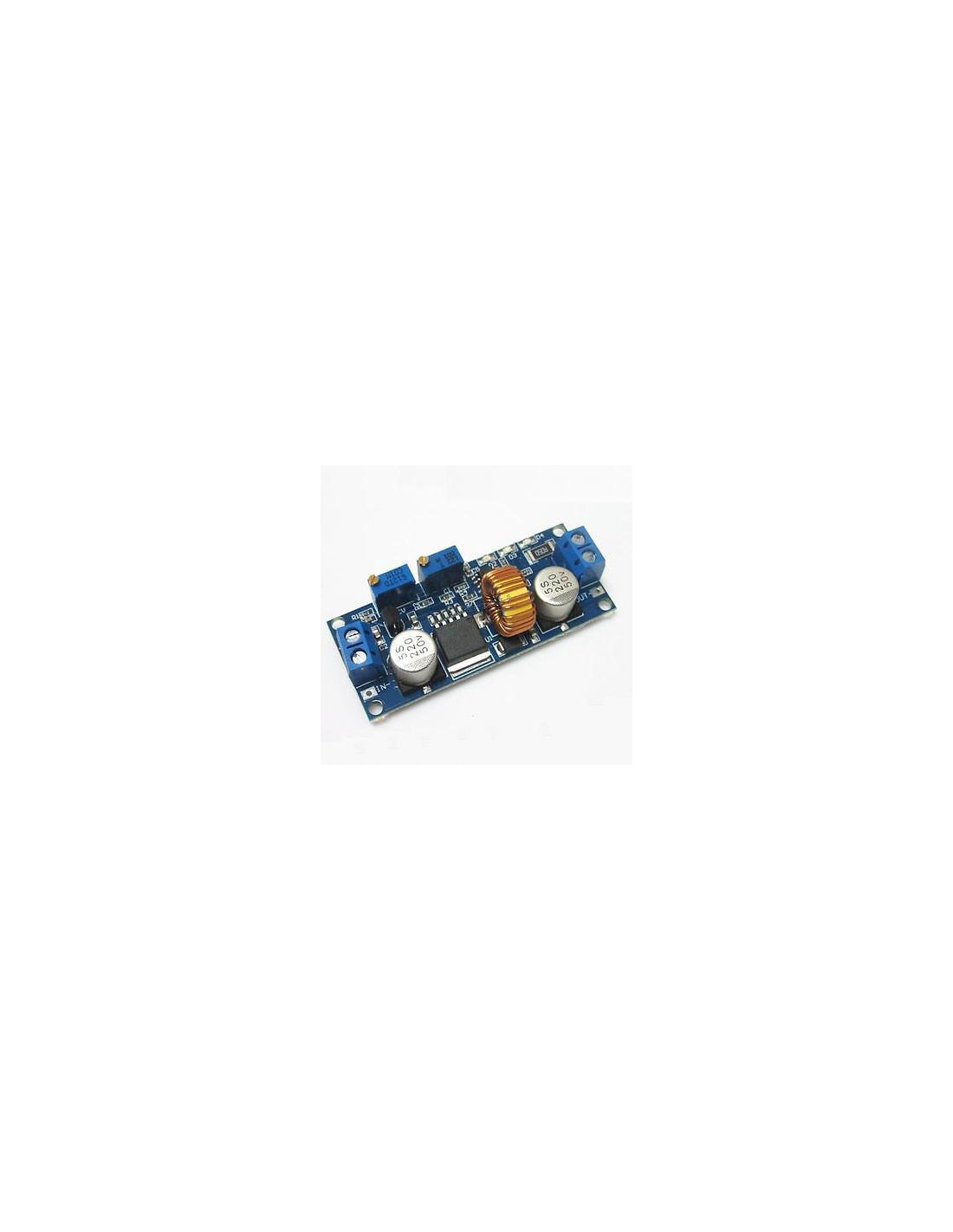

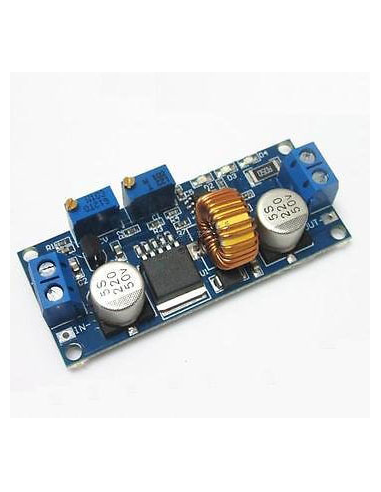

5A CC&CV Buck Step-Down Power Module XL4015

XL4015

Application:

• Lithium battery charger
• LED Driver

Note:

• Do not combine connection of input GND and output GND

Features:

• High power, high efficiency, 5A, low ripple;
• Three main functions:
  • use as an ordinary step-down modules with overcurrent protection capabilities;
  • as the value of various voltage lithium batteries, batteries, nickel-cadmium nickel-metal hydride batteries (battery) charger for solar panels, wind turbines and other occasions;
  • used as high-power LED constant current driver module;
• Having a constant voltage and constant current modes, the indicator light indicates which mode is currently in the module;
• When used as a lithium battery charger, you can set the float voltage and charge current, it has a light finger
• It is shown being charged or has been filled;
• Current limiting protection, output short circuit will not even burn module.

Parameters:

• Input: IN + input positive, IN- input negative
  Output way: OUT + output positive level, OUT- output negative
• Input Voltage: 4-38V
• Output voltage: 1.25-36V continuously adjustable
• Output current: adjustable, 5A
• Output Power: 75W maximum
• Operating temperature: -40 to + 85 degrees
• Operating frequency: 180KHz
• Conversion efficiency: up to 96%
• Short circuit protection: Yes (limited current 8A)
• Over temperature protection: (automatically shut off the output after overtemperature)
• Input reverse polarity protection: None, (as required in the input string into a large-current diode)
• Installation: four 3mm screws
• Connection: terminals or solder terminals, V-IN is the input, V-OUT output
• Module Size: Length 61.7mm Width 26.2mm height 15mm
• Weight: 25g
