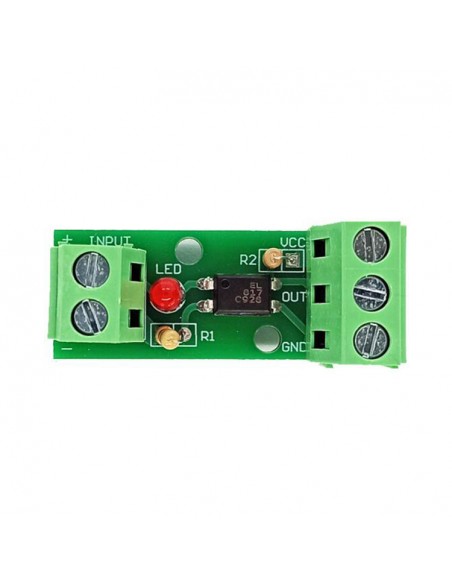

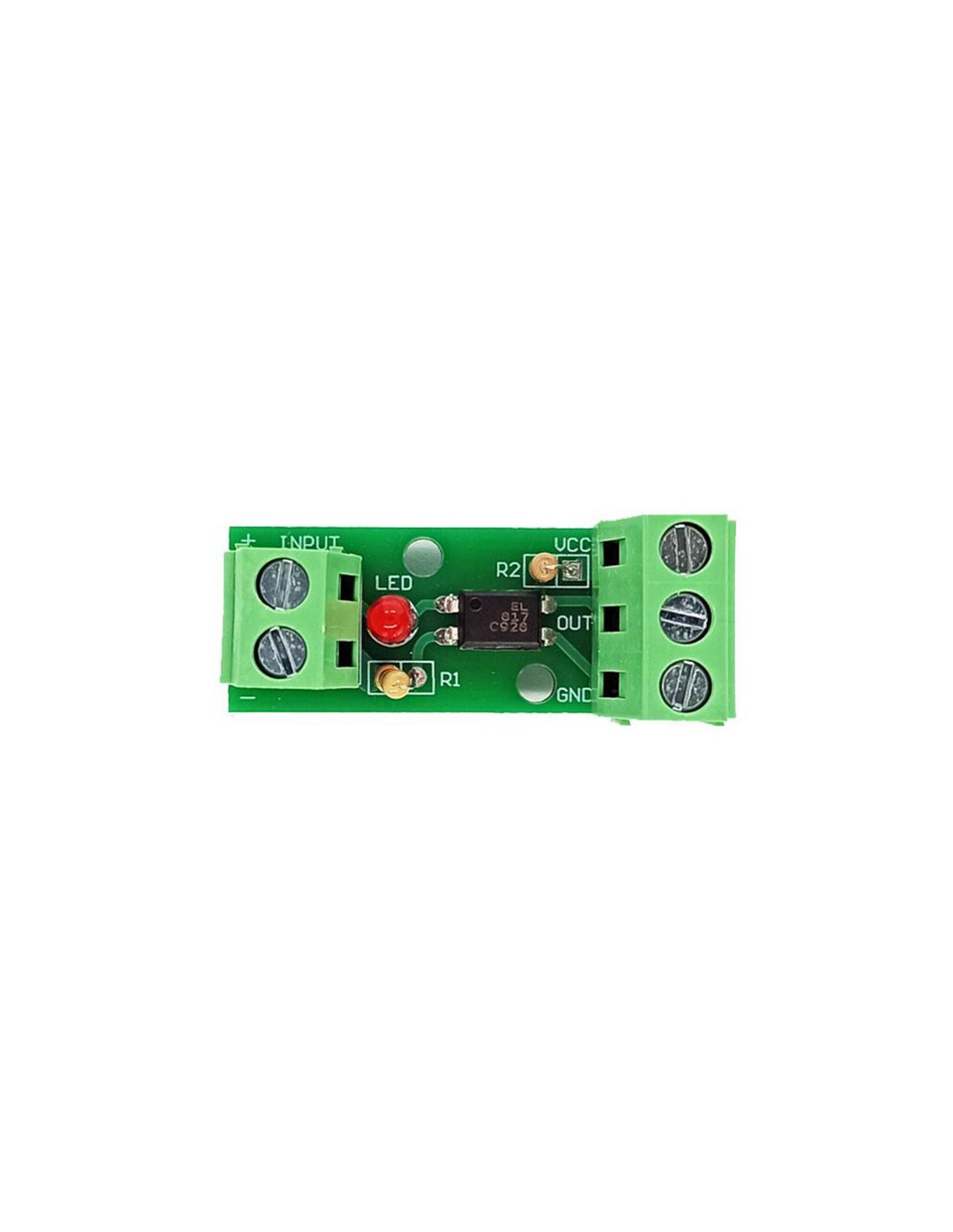

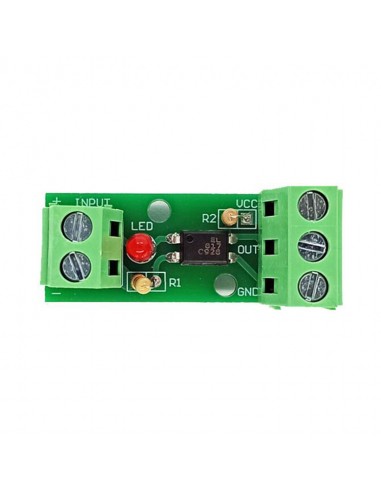

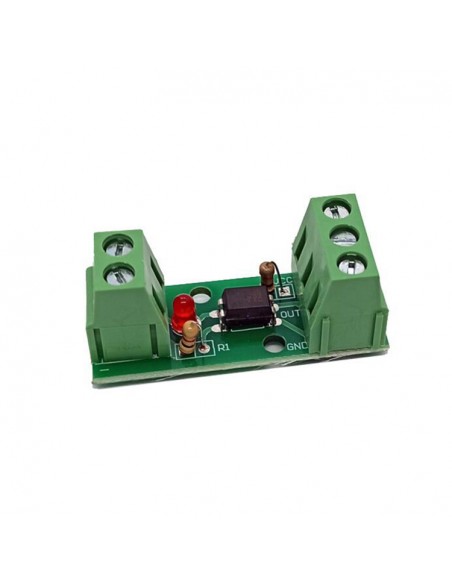

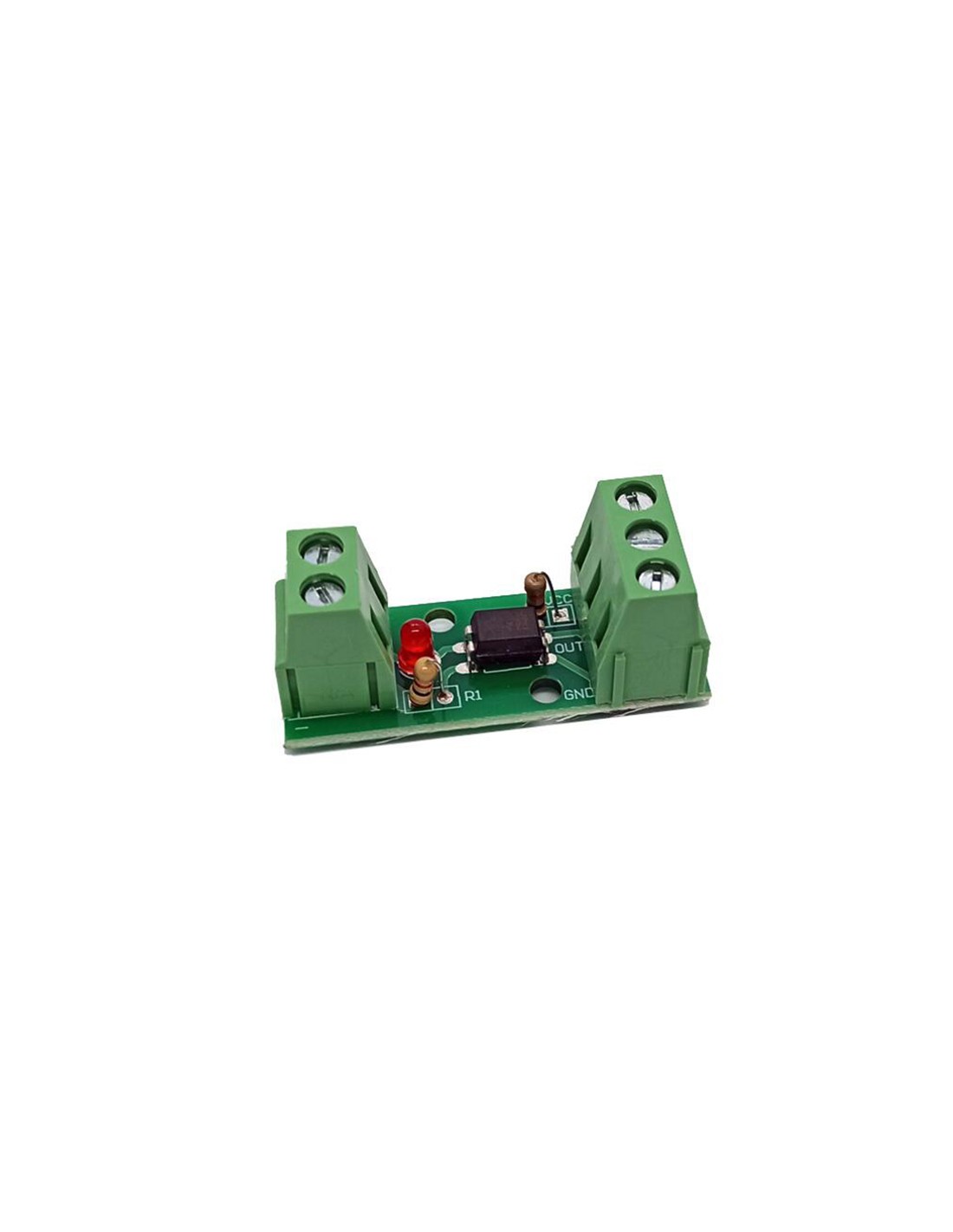

3-5V Input Optocoupler Isolation Module

Enhance the performance and reliability of your electronic projects with our 3-5V Input Optocoupler Isolation Module. This compact and versatile module utilizes advanced optocoupler technology to provide reliable signal isolation and interference protection, making it essential for applications requiring precise control and isolation between different voltage levels.

Key Features:

• Optocoupler Isolation: The module features optocoupler isolation, ensuring reliable signal transmission while effectively isolating sensitive circuits from electrical noise and interference.
• Wide Input Signal Compatibility: Accepts DC input signal voltages ranging from 3V to 5V, making it suitable for interfacing with microcontrollers, PLCs (Programmable Logic Controllers), and other digital processors operating at low voltage levels.
• Flexible Output Voltage: Provides a wide range of output signal voltage suitable for DC loads, ensuring compatibility with various motor control and inverter applications.
• Versatile Applications: Ideal for driving motors, inverter control, and interfacing with high-voltage components while protecting low-voltage control systems from potential damage.
• High Isolation Rating: Offers an isolation voltage suitable for industrial applications, providing robust protection against voltage spikes and ground potential differences.
• Compact and Durable Design: Designed for reliable performance in industrial and automation environments, featuring a compact form factor and durable construction.

Product Specifications:

• Input Signal Voltage: 3-5V (DC)
• Output Signal Voltage: Wide voltage range suitable for DC loads
• EL817 Features:
  • Isolation Voltage: Greater than 3000V
  • Input Current: Maximum 50mA
  • Working Current: Greater than 1mA
  • Maximum Output Current: Up to 50mA (with appropriate input current)
  • Working Temperature: -55°C to 110°C
  • Maximum Application Signal Frequency: 5KHz

Applications:

• Motor Control and Drive Systems
• Inverter Control and Signal Inversion
• PLC and Microcontroller Interfacing
• Sensor Signal Conditioning
• Industrial Automation and Robotics

Empower your electronic projects with reliable signal isolation and level shifting capabilities using our 3-5V Input Optocoupler Isolation Module. Whether you're working on industrial automation systems, robotics, or motor control applications, this module provides a critical interface between different voltage domains, ensuring safe and efficient operation.

Note: Please ensure proper configuration and compatibility with your specific application requirements before installation and operation.
