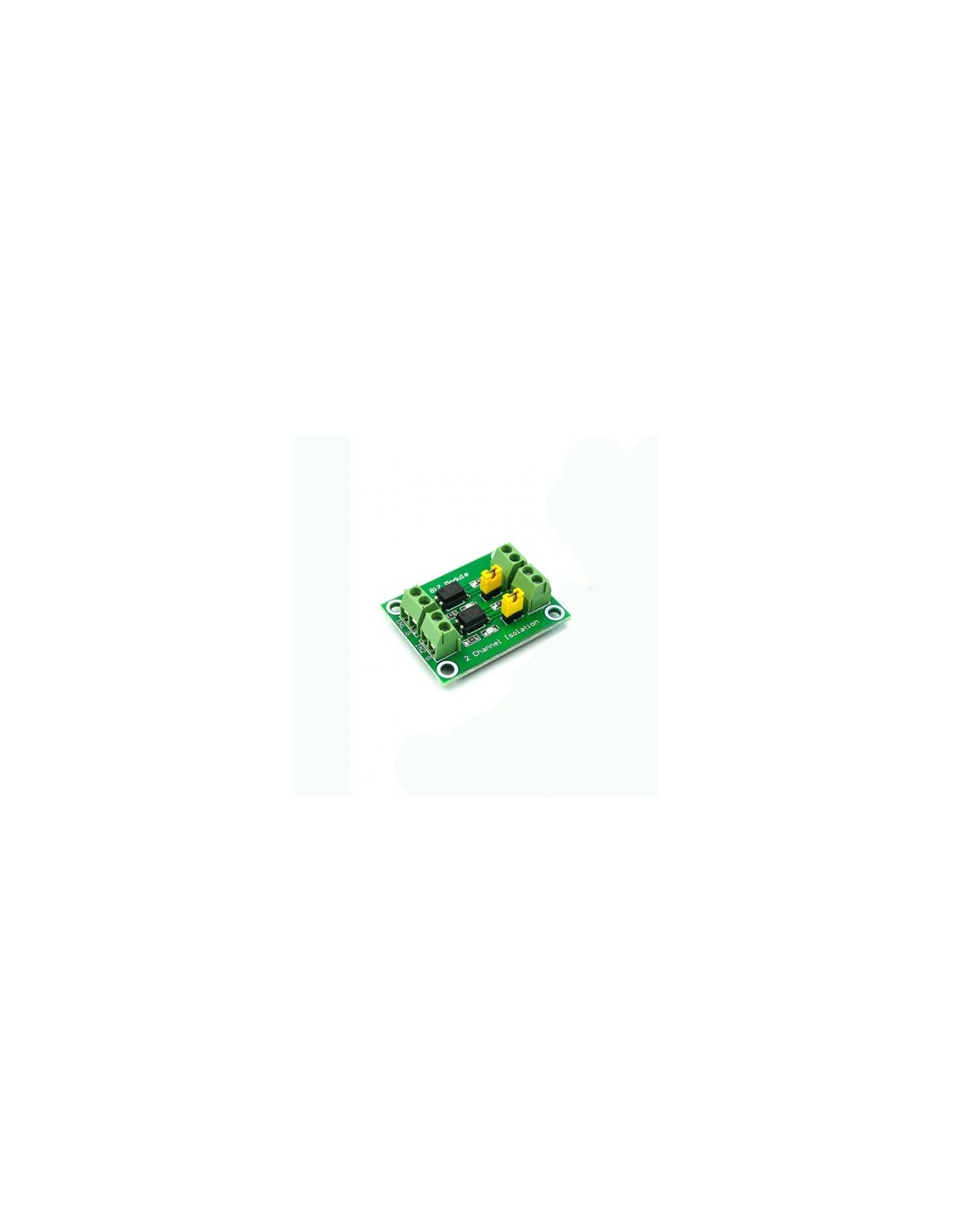

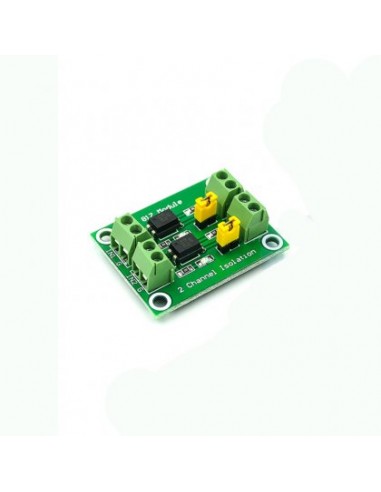

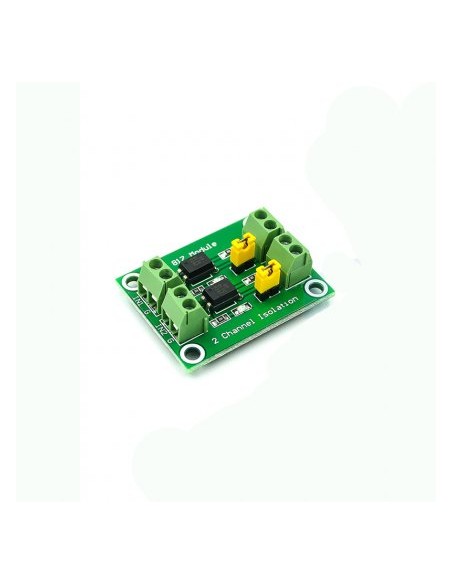

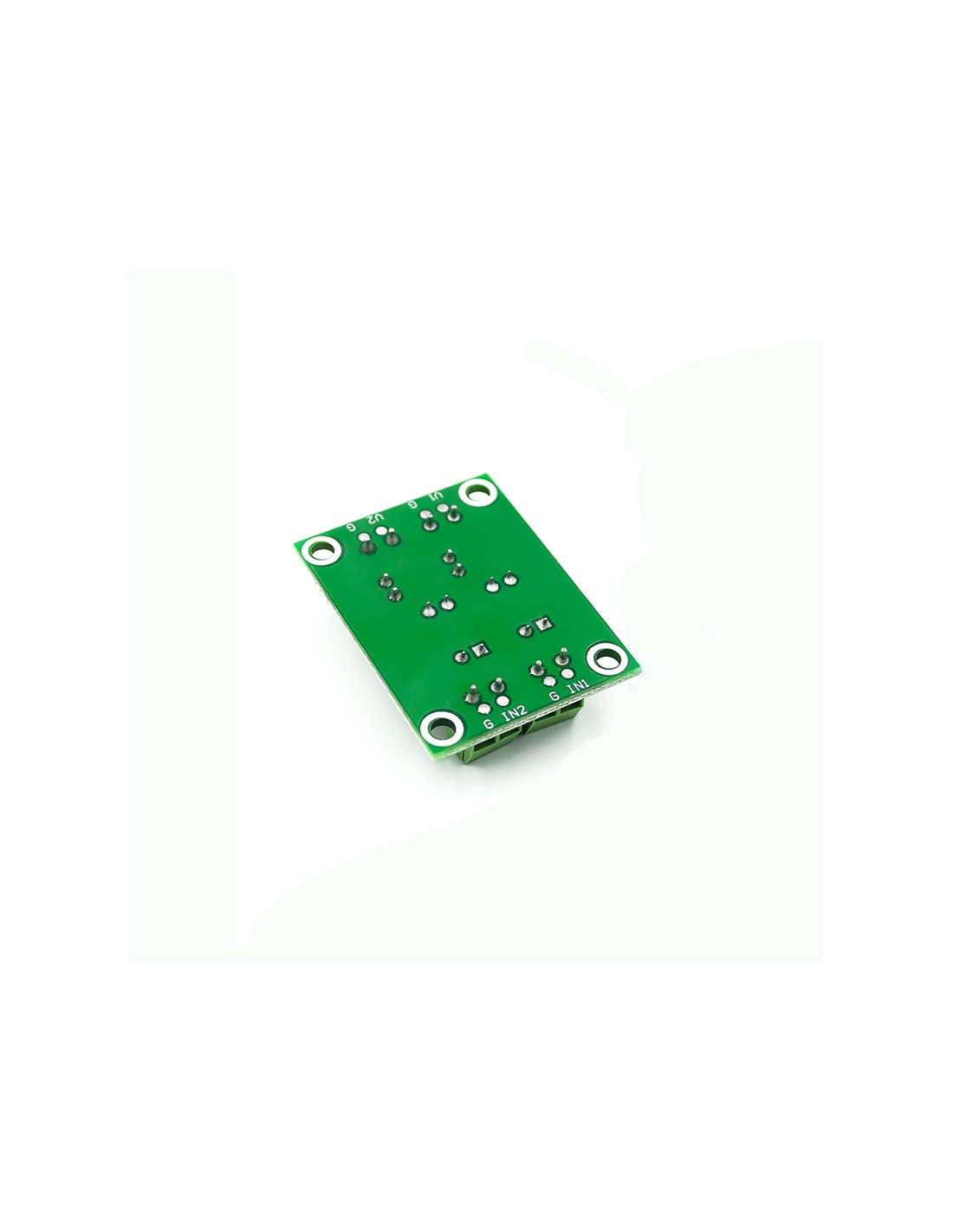

817 Optocoupler Voltage Isolation Board

Introducing the 817 Optocoupler / 2-Way Voltage Isolation Board: Your Ultimate Voltage Control Adapter Module with Photoelectric Isolation!

When encountering the need for isolation control and voltage conversion in practical work, look no further than the 817 Optocoupler / 2-Way Voltage Isolation Board. This versatile module is designed to provide reliable and efficient photoelectric isolation, making it an ideal solution for a wide range of applications.

Technical Specifications:

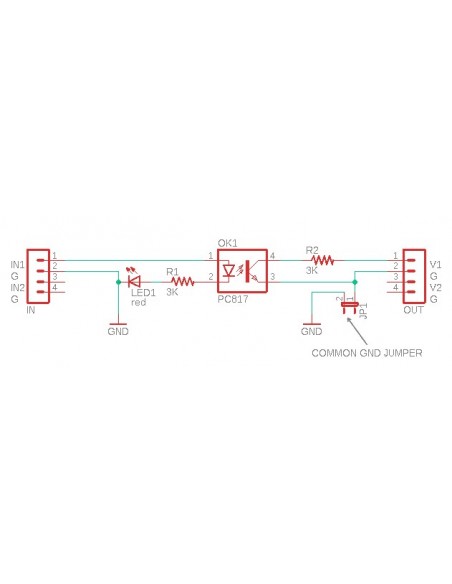

1. Optocoupler Model: 817 - The module incorporates the highly reliable 817 optocoupler, renowned for its excellent performance in voltage isolation applications. The 817 optocoupler ensures secure signal transmission between the input and output sides of the module, effectively protecting your devices from voltage fluctuations and potential damage.

2. Voltage Control Interface: The module's interface allows for convenient voltage level control in the range of 3.6-24V, using either a 3.3V or 5V input. When the control terminal is activated, the corresponding controlled terminal will also switch on, providing seamless voltage conversion and control capabilities.

3. Strong Photoelectric Isolation and Anti-Interference Ability: With its robust photoelectric isolation capabilities, this module effectively prevents signal interference and ensures reliable performance even in electrically noisy environments. It can drive high-power transistors, MOS transistors, and other high-voltage driving scenarios, or directly activate low-power 24V relays.

4. Pulse Signal Limitations: It's important to note that the 817 optocoupler has a pulse signal limit below 4KHZ. For control signals exceeding 4KHZ, it is recommended not to use this module as it may not function properly. This limitation ensures optimal performance and compatibility for your specific control signal requirements.

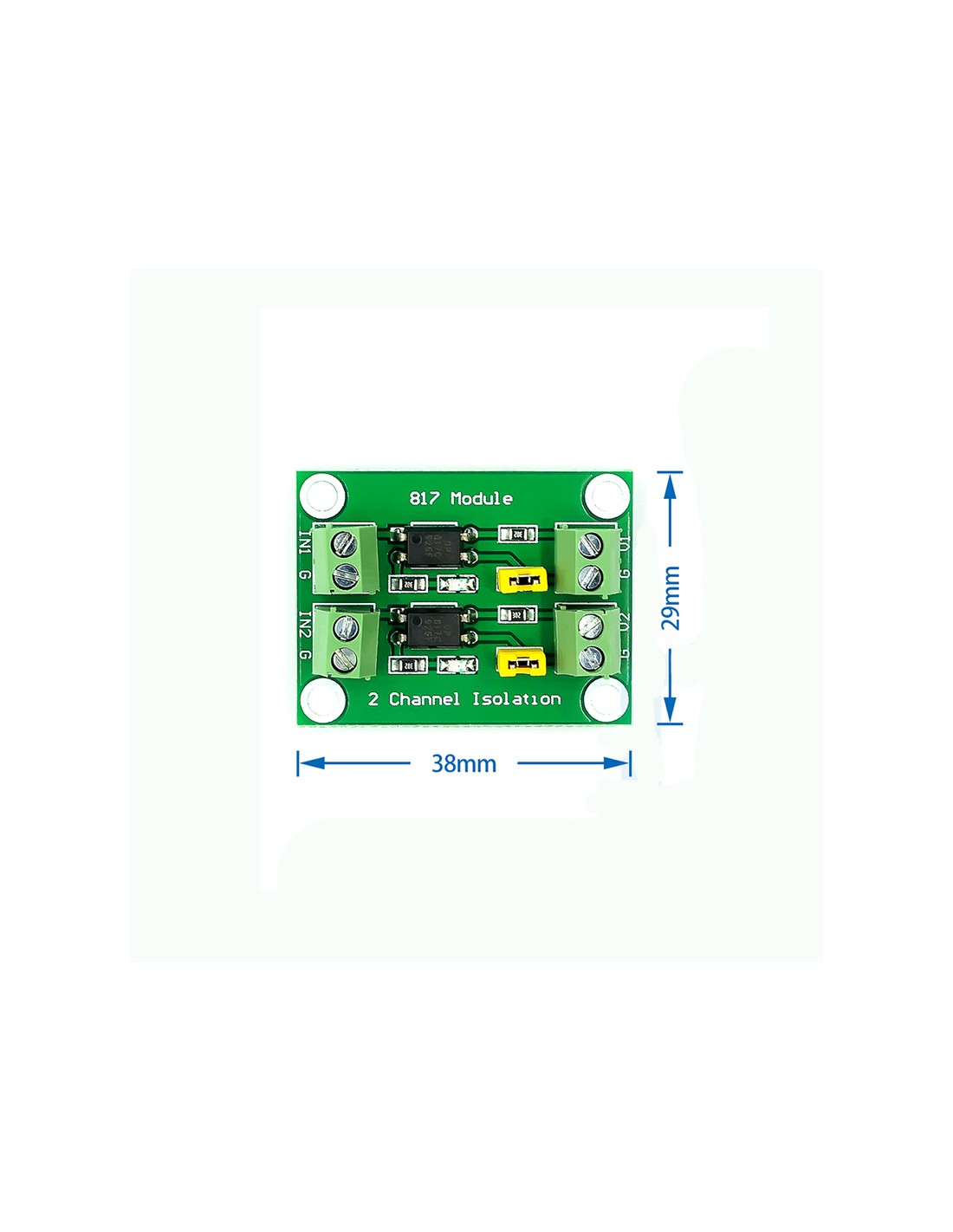

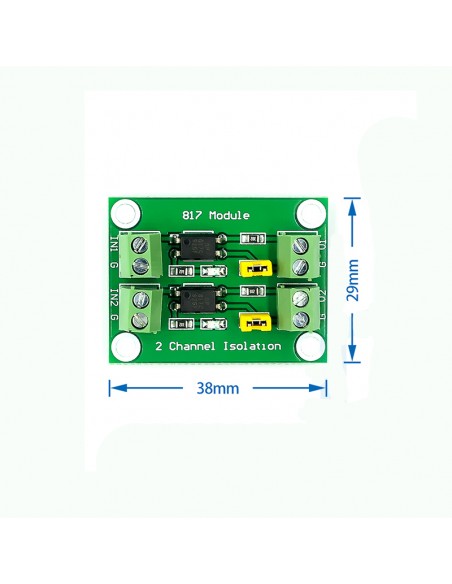

5. Compact Design: The module features a compact and space-saving design, allowing for easy integration into your existing electronic systems or prototype projects. Its small form factor makes it convenient for various applications, including industrial automation, motor control, robotics, and more.

6. High-Quality Components: The 817 Optocoupler / 2-Way Voltage Isolation Board is constructed using high-quality components to ensure long-lasting durability and reliable performance. The module undergoes rigorous testing and quality checks to meet the highest industry standards, providing you with a dependable solution for your voltage control needs.

7. Easy Installation: The module offers a user-friendly interface, simplifying the installation process. It comes with clearly labeled input and output terminals, enabling hassle-free connections to your circuitry. The compact size and lightweight construction make it easy to integrate into your projects without taking up excessive space.

Experience the benefits of superior voltage control, enhanced safety, and reliable isolation with the 817 Optocoupler / 2-Way Voltage Isolation Board. Whether you're an electronics enthusiast, a hobbyist, or a professional engineer, this module is an essential tool for isolating voltage, preventing signal interference, and protecting your valuable equipment. Upgrade your electronic systems today with this versatile and efficient voltage control adapter module!
