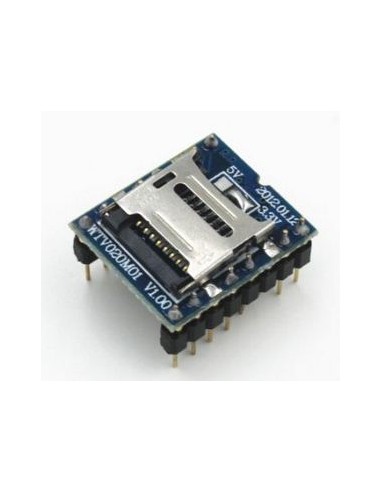

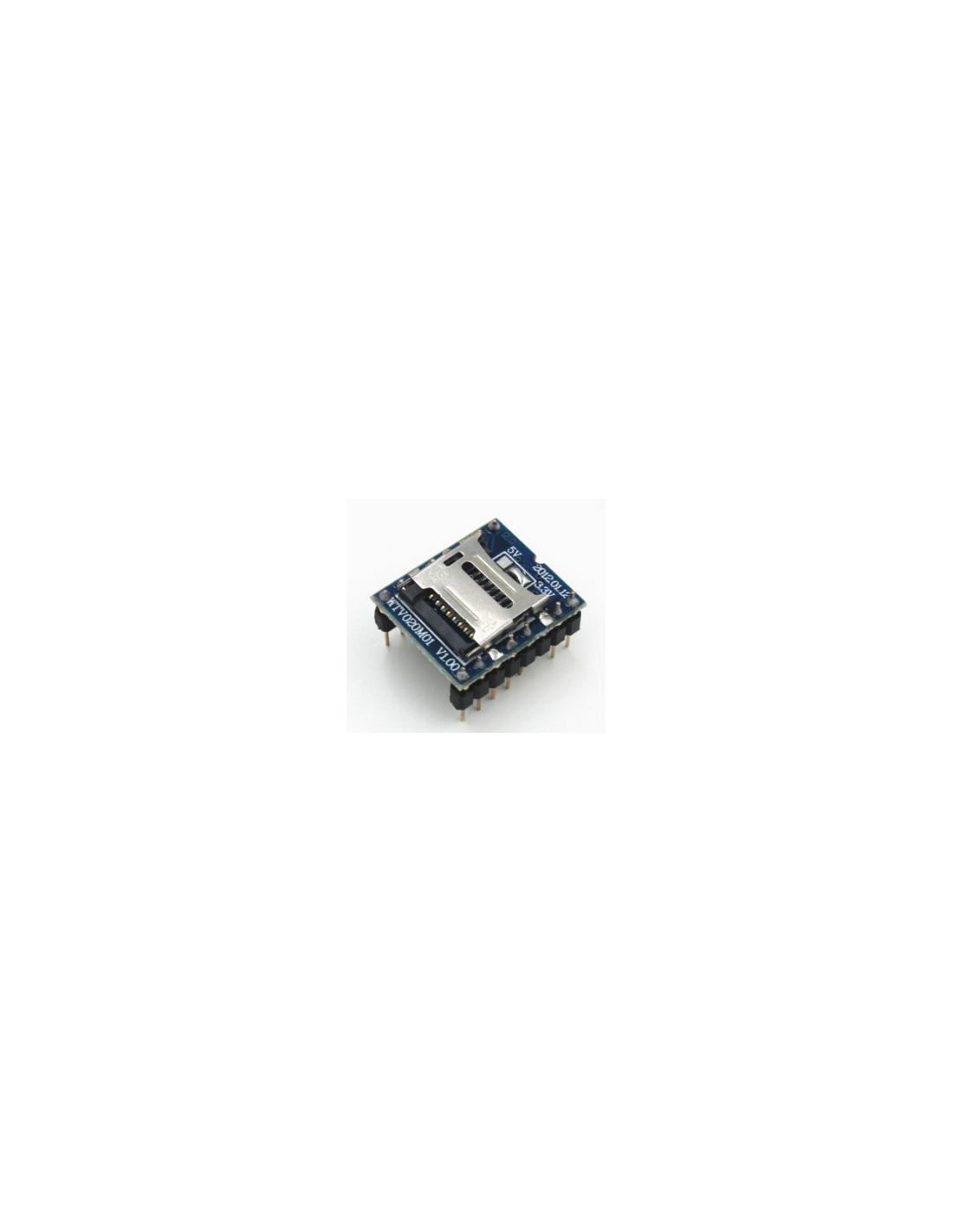

WTV020 plug-in SD card Voice module, the main chip is WTV020-16S and WTV020-20S package chips. Voice updates directly through an SD card reader that saved from a computer. Control settings can also stored in TXT file changes in the SD card. The module supports the FAT file system. Support and ADPCM WAV file playback. Supports two-wire serial control mode, the key way and UART 232 serial manner. Automatic speech recognition and speech sample rate format.
Features:
- Products for WTV020 chip module plug the SD card, supports 32M ~ 1GBit capacity card; (An Chinese type IC)
- Supports the FAT file system, SD card as storage medium;
- Support playing WAV format files and 4Bit ADCPM;
- Supports automatic speech recognition folders and file playback;
- You can play background music and commercials language;
- Control methods are key control, second control and UART232 serial control;
- WTV master chip has WTV020-16SOP and WTV020-20SOP two packages, both of which are compatible;
- You can play any segment of speech;
- Operating voltage: DC2.6 ~ 3.6V;
- Classified by folder store content, easy to operate.
Documentation:
User Manual can be sent by request. Please email info@netram.co.za.
